Google Earth Enterprise Documentation Home | GEE Server administration

Manage snippet profiles

You can customize your database view and available features in Google Earth Enterprise Client (EC) by setting up snippet profiles in the the GEE Server admin console.

Snippets are different properties and options that may be specified for a Fusion 3D database. When you connect to a database in Google Earth EC, snippets control its appearance and behavior. GEE Server lets you set your snippet preferences, then combine snippets into a snippet profile, which can then be applied to any database that you publish. The snippet profile settings then modify the database's behavior and appearance when you connect to it in Google Earth EC.

For example, many of these preferences (or snippets) apply to display characteristics, such as showing or hiding different elements such as the Google logo or your own co-brand logo. You can also apply other settings, such as caching data on disk, enabling authentication, hiding user data in the About dialog, and specifying a reverse geocoder server URL.

Google Earth EC recognizes only the settings made by the first database that you connect to in Google Earth EC. This applies when you are connecting to multiple databases.

Caution: If you are working with multiple GEE Server users on multiple workstations, it is important to remember that snippet profiles can be accessed by all users at the same time. Be sure to coordinate with any other users to not overwrite snippet profile settings.

To create a snippet profile:

  1. Access the Google Earth Enterprise Server Admin console in a browser window by going to, replacing myserver and mydomainname with your server and domain.
  2. Sign in with the default credentials or the username and password assigned to you:
    • Default username: geapacheuser
    • Default password: geeadmin

    Note: If you do not know your username and password, contact your Google Earth Enterprise Server System Administrator.

  3. Click Snippet profiles to display your snippet profiles.
  4. Click Create New. The Create new snippet profile dialog appears.

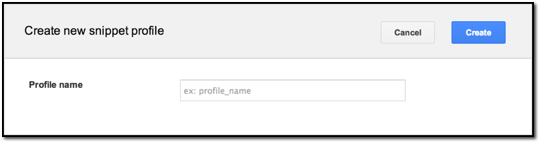

    GEE Server Create Snippet Profile dialog

  5. Enter a name for the new snippet profile and click Create. The snippet profile name appears in red in the Existing snippet profile list and the Snippet editor opens.

To edit snippet settings:

  1. Click the Add a new snippet set to the profile drop-down to display the list of available snippets.

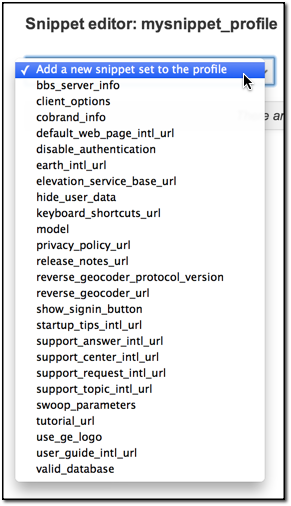

    GEE Server snippet profile list

  2. Select a snippet from the list. The selected snippet options are added to the current snippet profile and appear in the profile list.

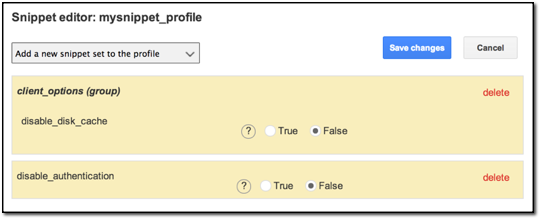

    GEE Server snippet examples

    You can select some snippets multiple times per profile, For example, you may want to add more than one customized logo to be displayed in Google Earth EC. For those snippets that cannot be added to a profile more than once, such as disable authentication, the snippet name appears greyed out and a checkmark appears next to it in the snippet list.

    GEE Server snippet profile list-greyed

  3. Edit the snippet profile to specify values for the snippets. See the following Snippet Settings table for snippet settings.
    When you add a snippet, you must enter values in the empty fields; if you want the snippet string to be empty, which is the default setting, you should not add the snippet and edit its values.
  4. When you have finished adding snippets and specifying values for your snippet profile, click Save changes.

    Now you can apply your snippet profile to any 3D database you publish.

Snippet Settings

The following table lists the syntax for all of the available dbRoot snippets.

Snippet Name Purpose Syntax Notes
bbs_server_info Specify BBS Server info. base_url—URL of the server, including protocol, domain name, and port.
file_submit_path—Path on server where files can be submitted.
name—Name that will be displayed in context menu to user. Must be translated.
post_wizard_path—Path on server where wizard can be found.
client_options Disable disk caching in Google Earth EC. disable_disk_cache Default value is False
cobrand_info Add custom logo to Google Earth EC display window. logo_url—URL of image to use as logo
screen_size—Positive value <=1 specifies scale with screen.
tie_point—Controls the reference point in the overlay.
x_coord.is_relative—If True, the coordinate is relative to the screen.
x_coord.value—Coordinate value. Interpretation depends on value set in x_coord.is_relative.
y_coord.is_relative—If True, the coordinate is relative to the screen.
y_coord.value—Coordinate value. Interpretation depends on value set in y_coord.is_relative.
logo_url can be remote or local.
screen_size makes logo scalable with screen by forcing its width to occupy a fraction of the screen. For example, a value of 0.25 sets the given logo to occupy 25% of the screen.
default_web_page_intl_url Default location of web page in Google Earth EC. Can be set to an internal IP or host name address. Default web page value in GEE is an empty string.
disable_authentication Disable session cookie-based authentication. boolean Indicates that this database does not require session cookie-based authentication.
earth_intl_url Location of international page for Google Earth.
Terrain elevation service URL. If field is empty, service is unavailable.
hide_user_data True = Suppress user name in the Help -> About window. False = Display user name. boolean Default is False.
keyboard_shortcuts_url URL for keyboard shortcuts page. If not specified, this URL is built from user_guide_intl_url as user_guide_intl_url"ug_keyboard.html" Can be set to an internal IP or host name address.
model compressed_negative_altitude_threshold—Threshold below which negative altitudes are compressed
elevation_bias—Elevation bias
flattening—Planet flattening. Default value is 1.0/298.257223563 (from WGS84)
negative_altitude_exponent_bias—Bias for negative altitude so that ocean tiles can be streamed to older clients
radius—Mean planet radius. Default value is the WGS84 model for earth
privacy_policy_url URL for privacy policy. IP address or host name Can be set to an internal IP or host name address.
release_notes_url URL for release notes. IP address or host name Can be set to an internal IP or host name address.
Reverse geocoder protocol version. numeric value Default is 3 which is the protocol supported by newer clients.
reverse_geocoder_url Reverse geocoder server URL.
show_signin_button If True, shows the signin button in the top-right corner of the display window. boolean
startup_tips_intl_url Localize international URL from which to load startup tips for Earth 7.0 or higher.
support_answer_intl_url Localize international URL for support answers
support_center_intl_url Localize international URL for the support center
support_request_intl_url Localize international URL for support requests
support_topic_intl_url Localize international URL for support topics
swoop_parameters Controls how far from a target swooping should start. start_dist_in_meters
tutorial_url URL for tutorial page. If URL is not specified, this URL is built from user_guide_intl_url as user_guide_intl_url + "tutorials/index.html".
use_ge_logo Shows/hides Google Earth logo in lower right corner of display. boolean Default is True.
user_guide_intl_url Localize international URL for documentation Defaults to local PDF file for Google Earth EC. Can be set to an internal IP or hostname address.
valid_database Validates the database name and URL. database_name—Human-readable name of database, for example, "Primary Database" or "Digital Globe Database"
database_url—URL of server. This can include a path and a query, and must be a well-formed, absolute URL.

To modify a snippet profile:

  1. To change the snippets in a snippet profile, click the snippet profile name in the Existing snippet profiles list that you want to edit.

    The Snippet editor appears with the name of your selected snippet profile and the list of included snippets.

    All your previously selected snippets can be edited with new options and settings.

  2. To add a snippet, click the drop-down list to select a new snippet.
  3. To delete a snippet from your profile, click delete in the snippet settings.

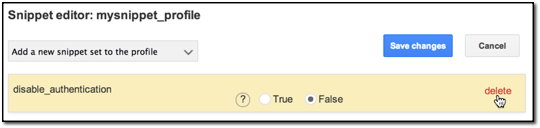

    GEE Server Snippet editor: delete snippet

  4. Click Save Changes.

To delete a snippet profile:

  1. Hover your cursor over the name of the snippet profile that you want to delete. The delete option appears.

    GEE Server Snippet profiles: delete snippet profile

    A message prompts you to confirm that you want to delete the selected snippet profile.

  2. Click Yes.

    The snippet profile disappears from the Existing snippet profiles list.
