Benchmarking outcomes for applying task rules

This article describes the benchmarking outcomes for applying various task rules to a test set of data under a similar environment. The results are useful in providing guidance in how task rules can improve GEE performance of loading assets and build times.

This set of tests was designed to help assess how GEE performs in a specific environment. Although certain conclusions can be drawn from the test results, your results may differ. The figures presented here can be used as a reference for the GEE performance only. This testing was conducted with GEE 4.4 using publicly available geospatial data to build a 3D database.

GEE System Specifications

The following table lists the software and hardware specifications that were used for testing.
OS Ubuntu 12.04.1 LTS
Processor 8x Intel(R) Xeon ® CPU @2.60GHz
CPU 2599.998 MHz
Cache size 20488 KB
Memory 30 GB

This set of tests used raster data, terrain data and vector data that are freely available online. Some of them provide global coverage and others provide local high resolution coverage.

Fusion Server Configurations - Task Rules

A number of task rules can be configured to increase the processing speed. You configure task rules settings to assign a number of CPUs to processes that can be run concurrently.

Fusion Server has the following two binaries which are multithreaded to increase processing speed when building a 3D database:

You can identify the activity of these binaries during the processing of your databases by checking the log files listed in the Version Properties dialog. (Right-click an asset in the Asset Manager dialog.)

gepackgen generates imagery or terrain project packets. Multiple gepackgen processes can run concurrently to speed up the building of the imagery projects. gecombineterrain processes 3D databases and merges terrain packets from the specified indices.

Task rules can be configured based on the number of concurrent processes required to be run on the Fusion server. Since gecombineterrain is a serial process and must be completed before the other database-level building activities can start, the CombinedTerrain task rule is used to put all available CPUs/cores onto the build, assuming that one core is reserved for the system.

The ImageryPacketLevel and TerrainPacketLevel task rules configure gepackgen for concurrent processing. Both assign more or less CPUs to the pack files that are created during project builds.

The task rules apply to all subsequent tasks that the Fusion server performs, and can’t be applied to individual assets or projects.

To compare the effect of different task rule settings on the performance of the Fusion server when loading assets and building resources, projects, and databases, three different task rule configurations were used: default taskrule, taskrule 2 and taskrule 3. Default task rule is the GEE default setting after installation.

Detailed settings are in the following table.

Default taskrule Default taskrule Taskrule 2 Taskrule 2 Taskrule 3 Taskrule 3
Min CPU Max CPU Min CPU Max CPU Min CPU Max CPU
CombinedTerrain 1 1 7 7 7 7
ImageryPacketLevel 1 1 3 3 2 2
TerrainPacketLevel 1 1 3 4 3 4

In this set of tests, the server was permitted to use 7 CPU cores for Fusion processing; take Taskrule 2 for example, there can be up to 2 gepackgen tasks running concurrently with 3 CPUs assigned for each task.

Project build time under different taskrules

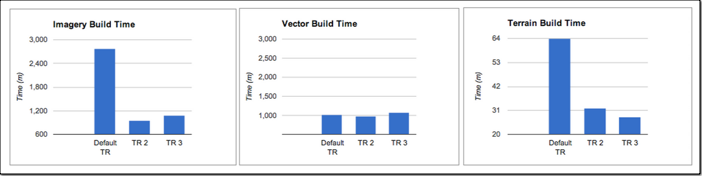

Total raster, terrain and vector project build times are illustrated in the following charts. The vector project build time doesn’t change much at all because the task rule settings have no impact on the gevectorfuse command. For the imagery project, taskrule 2 provides the best build performance. For the terrain project, taskrule 3 provides the best build performance.

Task rule benchmarking outcomes

Total database build time

The database build time with task rule 3 was the fastest - reducing the time to 25.31 hours. Under the default task rule setting, the total database build time took the longest time to finish, 33.52 hours.

Recommendations
