Manage virtual hosts¶
A virtual host combines Apache virtual host functionality with publisher mapping within GEE Server so that you can publish databases securely. You create and register a virtual host in GEE Server, assign a security protocol to it, and then associate multiple databases, including portable globes and maps, with that single virtual host. Add another virtual host when you want to use different authentication and to associate different databases.
For example, you may have one or two security protocols but many databases and portable files to publish. Once you have created a virtual host for each security protocol and set up the appropriate authentication, you can associate different databases and portable globes and maps with the different virtual hosts, depending on the security protocols you need to apply.
You can also use the default virtual host configurations provided with GEE Server.
Tip
See Configure GEE Server for SSL/HTTPS to add virtual hosts for HTTPS servers.
See geserveradmin in the Command reference for information about all the virtual host commands.
Note
You may configure a virtual server in Apache using
standard virtual host directives but it won’t be capable of
hosting a GEE database until it is registered using
geserveradmin
, as described in Create and register a
virtual host in GEE Server.
- Default virtual hosts
- Create and register a virtual host in GEE Server
- Configure virtual hosts with a custom port number
- Associate a database with a virtual host
- Naming virtual hosts
Default virtual hosts
By default, GEE Server has two registered virtual hosts: public and secure. The secure virtual host is a protected virtual host with basic authentication. The default credentials are:
- Username: geeuser
- Password: geeuser
To reset the username and password:
sudo /opt/google/gehttpd/bin/htpasswd
/opt/google/gehttpd/conf.d/virtual_servers/.vhpasswd geeuser
The public virtual host is unprotected and does not require any authentication.
Create and register a virtual host with digest authentication
You create and register a virtual host using the
geserveradmin --addvh
command. This action results in a
location-based virtual host for which you can configure
authentication and create a password for a given user name. The
following example shows how to set up digest authentication, one
of the standard authentication types (AuthType
) provided by
Apache server. See Apache HTTP Server 2.4
htdigest.
Tip
In GEE 4.4, virtual hosts were previously called virtual servers. Now, in GEE 5.x, virtual hosts specify a security protocol only and can also be associated with multiple published globes and maps. This change decouples the task of setting up security protocols from publishing maps and globes.
To create and register a virtual host with digest authentication:
Create and register a virtual host in GEE Server using the
geserveradmin
command:/opt/google/bin/geserveradmin --addvh digest [--vhurl <url>] [--vhcachelevel <level>]
geserveradmin
creates the default location-based virtual hostdigest_host.location
in/opt/google/gehttpd/conf.d/virtual_servers
and registers it in GEE Server.The
vhurl
specifies the location of the virtual host. It must match the corresponding server-side virtual host configuration.Optionally, modify virtual host settings in
digest_host.location
to set up authentication.
To set up digest authentication:
Edit the
digest_host.location
file to set up the authentication configuration:cd /opt/google/gehttpd/conf.d/virtual_servers sudo vi digest_host.location
Add the following content to the
digest_host.location
file:# The digest virtual host. RewriteEngine on <Location /digest_host/> SetHandler fdb-handler AuthType Digest AuthName "Private" AuthDigestProvider file AuthUserFile /opt/google/gehttpd/conf.d/virtual_servers/.htdigest Require valid-user </Location>
Create the password with a given user name using the password path that you specified in the
digest_host.location
file:sudo htdigest -c /opt/google/gehttpd/conf.d/virtual_servers/.htdigest Private username sudo chmod 755 /opt/google/gehttpd/conf.d/virtual_servers/.htdigest #Enter password twice at prompt
Restart
geserver
after virtual host settings have been modified.sudo /etc/init.d/geserver restart
Tip
A virtual host can also be configured for SSL/HTTPS. See Configure GEE Server for SSL/HTTPS.
Configure virtual hosts with a custom port number
You may need to configure a virtual host to use a custom port setting
number, commonly to differentiate from any default port
(http:80
, https:443
) you may be using or when
standard port numbers are being used for other purposes. With some
edits to your Apache configuration files, you can set up custom
port numbers for any location-based virtual host.
When creating a location-based virtual host with a custom port
number, you need to rename and manually include the newly created
location file, *.location
or *.location_ssl
, in
<Apache path>/conf.d/virtual_servers/
into the corresponding
<Virtual Host>
section of the Apache configuration file and
restart GEE server.
To add a virtual host with a custom port number configured for SSL:
Run
geserveradmin
on the command line, e.g., adding a virtual hostmy_custom_port_ssl
with a virtual host URL and custom port number:# geserveradmin —addvh —ssl my_custom_port_ssl —vhurl https://myservername.com:4343
Change the extension of the newly created
my_custom_port_ssl.location_ssl
configuration file to differentiate from any default port (443) SSL virtual hosts you may have configured:<Apache path>/conf.d/virtual_servers/my_custom_port_ssl.location_ssl_custom
Then manually add the Include directives for your custom port virtual host to the SSL configuration file for Apache server,
/opt/google/gehttpd/conf/extra/httpd-ssl.conf
:<VirtualHost _non_default_:4343> # Include all SSL location-based virtual servers with custom port 4343. Include conf.d/virtual_servers/*.location_ssl_custom </VirtualHost>
Restart GEE Server:
sudo /etc/init.d/geserver restart
Associate a database with a virtual host

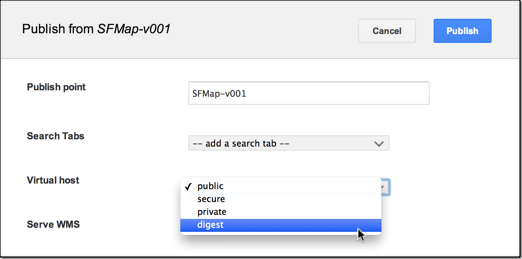

To associate a database or portable globe or map with a virtual host, you specify the virtual host when you publish in GEE Server.
See Publishing databases and portables.
Naming virtual hosts
Virtual hosts on GEE Server are name-based, meaning that you can have multiple names that serve assets running on a single IP address. With name-based virtual hosting, GEE Server relies on the client to report the host name as part of the HTTP headers. Using this method, many different hosts can share the same IP address.
Although usage of the virtual host names is hidden, reusing the name for other assets being served can cause conflicts. To that end, GEE Server checks the target path when you create a virtual host against reserved words and virtual host paths already registered in system, but does not check the virtual host name itself. Here is the list of reserved words that we check against: “fdb”, “htdocs”, “admin”, “cutter”, “earth”, “icons”, “js”, “maps”, “portable”, “shared_assets.”
