Non-clickable icons

By default, any point icon that you configure in Fusion displays a pop-up balloon whenever EC users click it. You can configure the pop-up balloons to display information about the point. An example is shown below.

However, if you do not want an icon to display a pop-up balloon, you can use one of Fusion’s Advanced options to make it a non-clickable icon. (Non-clickable icons are point icons that do not change when clicked.)

Clickable icon example

To create a non-clickable icon:

  1. Add a new point vector resource to a vector project. In the example below, the point vector resource is called USA_Cities.

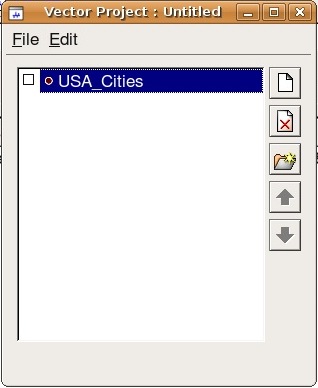

    Point layer resource example

  2. Assign filters, icon types, and minimum and maximum visibility display rule settings to the point layer.

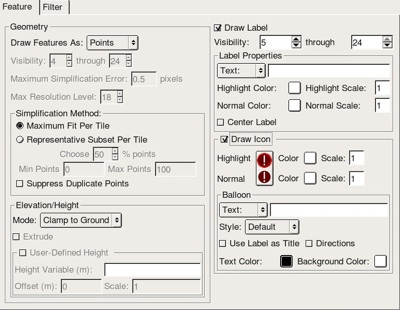

    Vector Display Rules window

  3. In the Balloon section, change the Style from Default to Advanced.

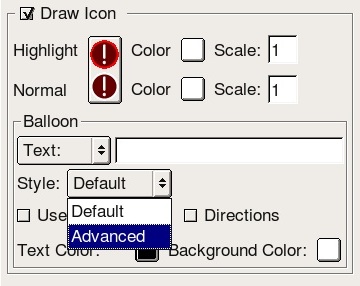

    Balloon style options

  4. Leave the Text field and the Advanced field empty.

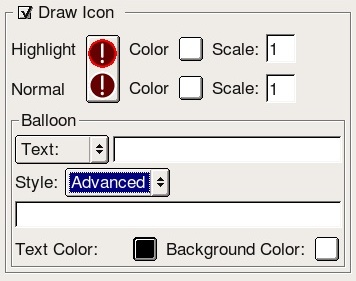

    Balloon style - Advanced

  5. Click Advanced. The Balloon Style Text window appears.

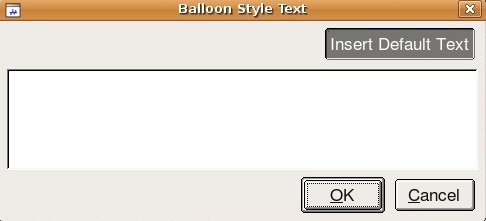

    Balloon Style Text window

  6. Click Insert Default Text.

  7. Remove all text except: $[description].

  8. Click OK twice to exit all windows.

  9. Save and Build the vector project.

  10. Build the 3D database, then publish to Fusion.

    You can now view the non-clickable icon in EC.
