Create custom masks

Table of Contents

Getting started

A new masking tool is now available with Google Earth Enterprise (GEE) Fusion Pro version 4.0 which is able to create very high quality, custom masks for imagery resources. This tool, gepolymaskgen, supports clipping coastlines from imagery resources or arbitrary polygonal shapes from imagery resources, and can be integrated into source file preparation or creating updated masks for existing imagery resources.

How to use this guide

This guide is intended to provide in-depth information about creating custom masks, the new gepolymaskgen tool, and the existing gemaskgen tool, as well as example cases with command sequences to build your own custom masks. You may jump directly to the cases section to build your custom masks and then read the informational sections later, or read the entire guide from start to finish.

What is gepolymaskgen?

gepolymaskgen is a new low-level GEE Fusion Pro tool capable of creating a mask file for a single source image, mosaicked source imagery set, or a GEE Fusion Pro imagery resource based on user-specified masking options. With this tool, users can programmatically create masks for imagery that follows a shoreline, create masks at a fixed feather value, or augment mask files with KML polygons from Google Earth to show or hide imagery through a mask. The gepolymaskgen tool has two key differences from the existing automask tool gemaskgen: 1) gepolymaskgen only fulfills operations specified by users and does not operate automatically in the same manner as gemaskgen; 2) gepolymaskgen may only be invoked by the command line, separately from the normal automated GEE resource import sequences.

What is gemaskgen?

gemaskgen is an existing low-level masking tool bundled with GEE Fusion Pro that is invoked by Fusion when building an imagery or terrain resource. The gemaskgen tool was designed to automatically build mask files for imported source imagery and terrain data to hide external, or internal, fill data from view on the globe. In order to build the mask, users must specify within the Resource Editing tool which band (Red, Green, or Blue) should be used to create the mask; the amount of feathering that should be applied between the fill data (masked) and the usable imagery; a tolerance value (buffer) that may be applied by the tool when checking if a pixel is fill value or not; if the entire image should be checked for fill data (holes); and if both white and black fill data should be included in the mask (0 is assumed default, 255 to be included).

The gemaskgen tool will be invoked by GEE Fusion Pro after the source imagery is converted into Fusion format (kip). gemaskgen collects the value for each corner pixel on band 1 of the image resource - which is assumed to be the fill data pixel value (0 is the typical value) - and then systematically moves through the kip adding all fill data into the mask until non-fill data is found. The edge between the fill data and usable imagery is feathered based on the user-specified feather value (in pixels). The new GEE Fusion Pro imagery or terrain resource is comprised of both the imported source data and the computed mask file as demonstrated in the graphic below.

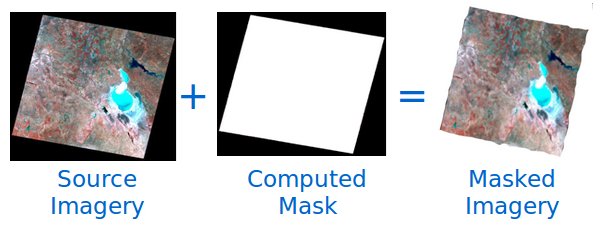

Masked imagery diagram

Useful information about gepolymaskgen

  • gepolymaskgen is a single-threaded low-level GEE Fusion command-line tool that may be manually invoked for building custom mask files for imagery or terrain data sets
  • Operationally, gepolymaskgen is CPU-intensive and very RAM-intensive.
    • At least 16GB free RAM must be available on the machine to safely build custom masks with gepolymaskgen.
  • All mask files built by gepolymaskgen will be written out in GeoTIFF format.
  • Mask files will be written with complementary geographic coordinates and projection to the source data.
    • All mask files, KML polygons, vector source files, and source imagery should be in the same projection for building custom masks.
    • Masks may be built for resources in Plate-Carre projection (EPSG:4326) or Mercator projection (EPSG:3857).
  • gepolymaskgen can build a mask for one source file or many source files that are described with a khvr virtual raster text file.
  • Mask files built by gepolymaskgen will use 255 to show imagery and 0 to hide imagery.
    • All new masks start as an image file with all pixels of value 0 - all imagery will be masked.
    • Areas to hide (to be masked) will be set to pixel value 0.
    • The --or_mask masking operator will, typically, show more imagery for an area in the final mask.
    • The --and_neg_mask masking operator will, typically, hide more imagery for an area in the final mask.
  • The final mask is built by subtracting and adding desired areas to hide or view by a sequence of operators.

Note

It is easy to create very high resolution masks with gepolymaskgen, to the point of pixel-by-pixel matching for the source imagery. Please check the overall raster size of your source imagery before creating a custom mask with gepolymaskgen as it is easy to create a custom mask that will be larger than the 2GB GeoTIFF file size limit. Please see Appendix C for further information on calculating the overall size of a mask file.

Useful information about gemaskgen

  • gemaskgen is a single-threaded low-level Fusion tool which is automatically called during image and terrain resource builds after the source imagery or terrain is imported.
  • All mask files computed by gemaskgen will be written out in GeoTIFF format.
  • gemaskgen scans through an imported imagery or terrain resource to:
    • identify the pixel value of each corner pixel, and
    • erode inward into the image to mask out all pixels that have the same pixel value as the corner pixels.
  • gemaskgen will, by default, create an output mask file which is no more than 16,000 pixels on any one side.
    • This can lead to low-resolution masks for high resolution data.
  • Masks may be manually created by invoking gemaskgen directly!
    • Masks larger than 16,000 pixels may be created for large imagery resources with the --maxsizeoption.
    • Please see Appendix D for additional details.

Comparison of the gemaskgen and gepolymaskgen

Capability gemaskgen gepolymaskgen
Reads Fusion format imagery (.kip) and terrain (.ktp) Yes No
Part of image resource import process Yes, for automask mode No
Can read source file images including: khvrs; GeoTIFFs; JPEG2000 No, can only read Fusion imagery and terrain resource formats Yes
Can automatically identify and mask Fill Data automatically within imagery resource (holes) Yes No, but may be manually removed with KML polygons
Can feather a specified amount of pixels from the edge of the image, irrespective of the imagery pixel values No Yes
Capable of creating high-resolution mask files Yes, manually possible Yes - depends on raster dimensions of input source file
Can automatically distinguish Fill Data from usable imagery by pixel values Yes No
Can mask out arbitrary polygonal shapes within the image resource No Yes

When to use gepolymaskgen

The gepolymaskgen tool is best suited for when imagery is to be masked along specific, designated borders - such as coastlines, boundaries, or a building - or to mask image at a fixed feathering from the image edge regardless of whether usable imagery or fill data are at the edge.

When to use gemaskgen

Fusion’s automask (gemaskgen) function is best suited for automatically creating mask files that detect and hide fill data while displaying usable (non-fill) imagery. gemaskgen is also very useful when working with large image resources to create a base mask that will be less than 2GB in file size but still facilitate a high fidelity mask.

Please see Appendix F for further instructions on how gemaskgen may be utilized with creating masks for large image resources.

  • A server or workstation with minimum 16GB RAM to build the custom masks. More RAM is better!
  • Global coastlines as polygons for coastline masking. Make certain these are polygons and not lines.
  • A GIS application, such as QGIS, to view source imagery datasets. This is helpful in determining if usable imagery is surrounded by fill data, reprojecting the source imagery, or combining multiple source files into one image.
  • A copy of Google Earth EC to connect to and view 3D databases built with the custom masks for QA testing. Google Earth can also be used in the masking process by creating KML polygons for additional areas that are to be masked from view.
  • A photo editing application such as Adobe Photoshop, GIMP, or similar, to view the custom mask files after gepolymaskgen builds, or to make modifications to the mask file such as unmasking water bodies or exposing more visible water from a coastline.

gepolymaskgen command usage

gepolymaskgen has a few command line parameters to specify the workflow for creating a mask. The main workflow is directing gepolymaskgen to create or load an image as a reference for masking, generating a mask based on desired regions, feathering the mask edges as needed, and then writing out the resulting mask. Here are the main gepolymaskgen options:

gepolymaskgen

  1. Specify which file to reference for creating the mask, or which existing mask file to load:

    • --base_image: specifies a source file that will be used for overall raster dimensions, geographic coordinates, and projection information. May be a GeoTIFF, JPEG2000, or KHVR file. Each gepolymaskgen invocation may only include either one --base_image or one --base_mask for masking operations.
    • --base_mask: specifies a mask file to read in for further mask processing. The specified file may be a GeoTIFF. Each gepolymaskgeninvocation may only include either one --base_image or one --base_maskfor masking operations.
  2. Modify the mask file by changing what is masked and feathering:

    • --feather: directs gepolymaskgen to create a feather along a masked edge by the specified number of pixels. Either positive or negative values may be specified with --feather to expand or contract the feathered edge around the masked line. Positive feather settings typically erode into the usable imagery from the mask line (contracting) while negative feather settings typically erode away from the usable imagery from the mask line (expanding). Using the --invert setting with a masking operation will reverse the effect a --feather operation has on the mask. The --feather option may be used with the --base_image, --base_mask, --and_neg_mask, and --or_mask mask options; however, only one --feather option may be specified for each operator. The default feather value for --feather is set to 0 pixels.
    • --feather_border: used in conjunction only with --feather. Directs gepolymaskgen to apply a feather to the extent of the mask file with the same feathering values specified with the --feather option. The --feather_border option is off by default.
    • --invert: directs gepolymaskgen to invert a specified mask from its original values to the opposite. In almost all cases, this involves swapping pixel values from 0 to 255 or 255 to 0, depending on whether the --base_image or --base_mask are inverted, or an --and_neg_mask or--or_mask are inverted. Inverting a mask affects the --feather operations as well for expanding or contracting mask feathering at the specified mask edges. The --invert option may be combined with --base_image, --base_mask, --and_neg_mask, --or_mask, or --output_mask.
    • --and_neg_mask: directs gepolymaskgen to remove a specified area from view (i.e. subtracting, or masking). May be combined with the--feather and --feather_border options to build a feathered edge along masked areas. Multiple --and_neg_maskoperations may be combined in one gepolymaskgen sequence as necessary for complex mask builds. It is also possible for a gepolymaskgensequence to include both--and_neg_mask and --or_mask operations.
    • --or_mask: directs gepolymaskgen to add a specified area into view (i.e. adding, or “unmasking”). May be combined with the --feather and --feather_border options to build a feathered edge along masked areas. Multiple--or_mask operations may be combined in one gepolymaskgen sequence, as necessary, for complex mask builds. It is also possible for a gepolymaskgen sequence to include both --and_neg_mask and --or_maskoperations.
  3. Specify the output mask

    • --output_mask: the folder path location and file name gepolymaskgen is to write the finished mask file. The completed mask file to import with GEE Fusion Pro must have the same file name as the source file with a -mask.tif extension. For example, if the source file is brazil-squareimage-nofill.tif the mask file must be named brazil-squareimage-nofill-mask.tif. Only one --output_mask may be specified per gepolymaskgenoperation.

    As an example, this gepolymaskgen invocation will create a zero-feather mask file that edge-matches source data:

    gepolymaskgen --feather 0 --feather_border 0 --base_image brazil-squareimage-nofill.khvr --invert --output_mask brazil-squareimage-nofill-mask.tif

    Let’s step through the sequence of events that occur when gepolymaskgen is invoked as noted above. A new mask file will be created with the same raster dimensions, projection, and geographic coordinates as the brazil-squareimage-nofill.khvr mosaic file specified with --base_image. gepolymaskgen will not feather the edge of the new mask file (--feather 0) for which all pixel values in the mask will be 0. The --invert option directs gepolymaskgen to change the mask pixel values from 0 to 255 before writing out the finished mask file brazil-squareimage-nofill-mask.tif. The resulting mask file will look like the image below as viewed in the GIMP photo editing tool. The resulting image resource, when imported into GEE Fusion Pro will display all pixels since the mask file includes edge-to-edge 255 pixels, to display the imagery. Conversely, if all pixels were value 0 (black), the image would be fully hidden from view.

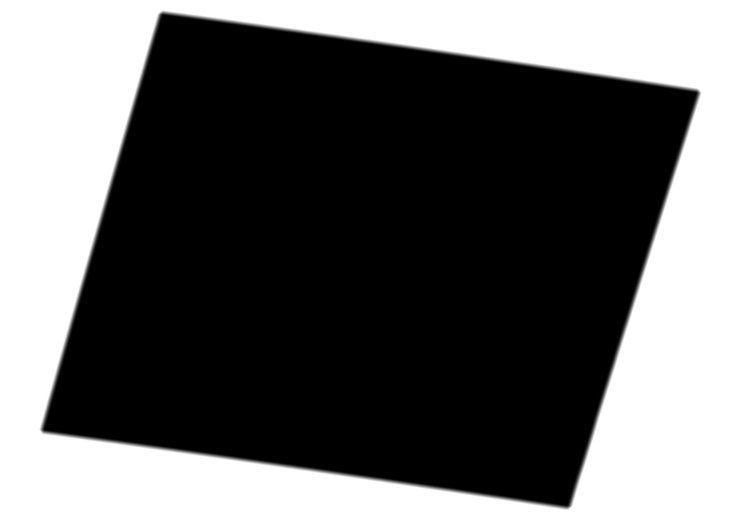

    An edge-matched, zero-feather mask file built by gepolymaskgen as viewed in the GIMP photo editing tool:

    Hidden masked diagram

    All custom mask files can be built with the different gepolymaskgen masking operators in various combinations to add or subtract shapes from a mask so only the desired imagery is visible. Some masking situations may be very complex and require building multiple mask files with gepolymaskgen to achieve the desired effect. The next section includes some common use cases for building custom masks as a quick reference guide so you may see the steps involved and copy and adapt the commands to suit your own masking needs. These example cases include creating an edge-matched imagery mask with no feathering; creating a mask that clips imagery to the coastline on one side and creates an edge feather on the other side; masking islands to only show land imagery; and masking sections within an image.

Example use cases and commands to build custom masks

Five example cases are available below to reference for building custom masks for imagery resources within Google Earth Enterprise Fusion Pro. Each case or scenario is intended to address common masking challenges that may be encountered when working with various source imagery data sets. Each case will include contextual information for the scenario, workflow description, an example build with screenshots, and a set of command templates that may be copied and pasted to the command line of your system to assist in building a custom mask.

The example cases include:

Case 1: Creating masks for imagery that has edge-to-edge usable imagery pixels with a fixed-width feather;

Case 2: Creating custom masks for islands with coastlines;

Case 3: Creating a custom mask with coastlines on one side and a fixed-width feather on other sides;

Case 4: Custom masks that mask out areas within the image utilizing a KML file;

Case 5: Creating a custom mask utilizing gemaskgen for automatic fill detection and gepolymaskgen for coastline masking

Case 1: Create custom masks for imagery which has no fill pixels (usable imagery goes to the edges)

Working with source imagery which includes usable imagery to the image edges can cause problems for the gemaskgen tool since usable imagery pixels (ex: 132, 56, 200), and not fill pixels (ex: 0, 0, 0), will occupy the image corners that gemaskgen references for fill pixel values. The gepolymaskgen tool is well-suited to meet this masking challenge since a mask can be created to the exact raster dimensions of the image resource, the exact feathering value (0) can be specified, and gepolymaskgen will not attempt to read pixel values. Consider the imagery mosaic below in the middle of Brazil that includes several source images which include all usable imagery and no fill.

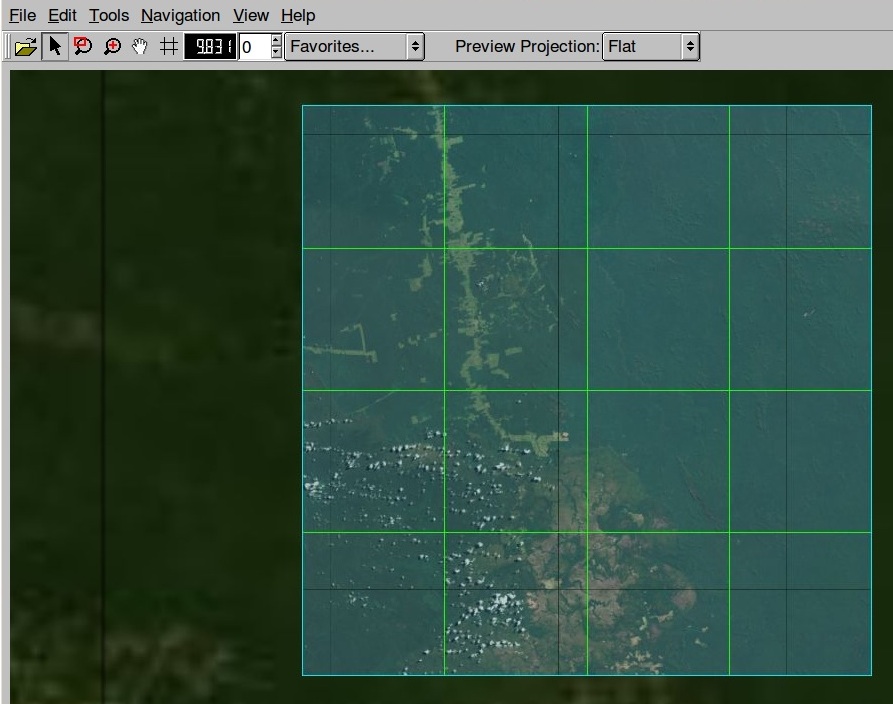

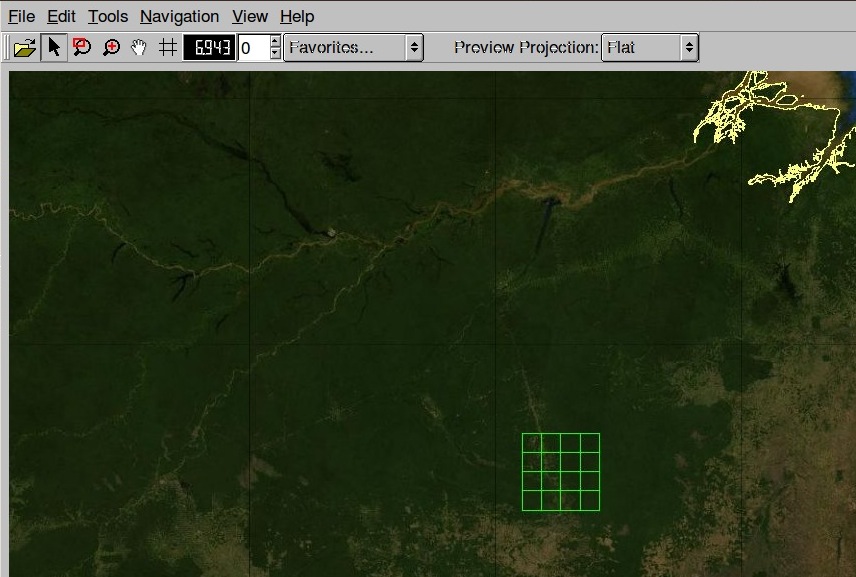

Location of image mosaic as seen with virtual raster file:

Brazil Imagery mosaic diagram

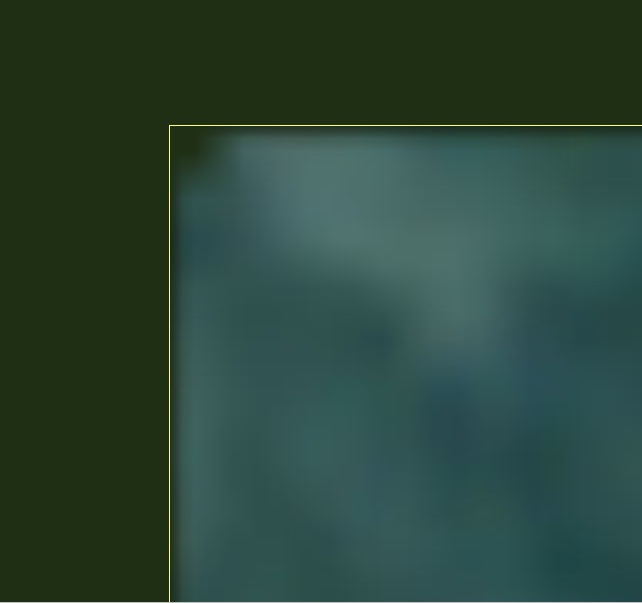

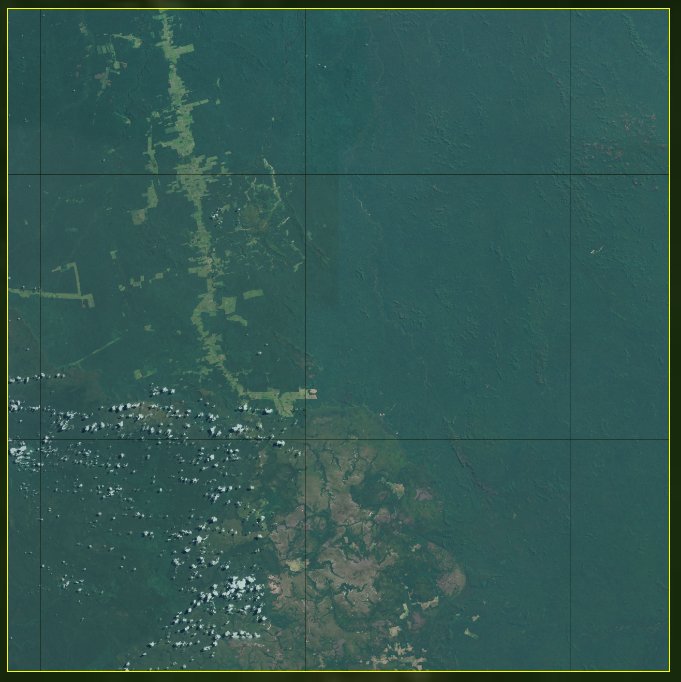

Close up of imagery resource imported into Fusion:

Brazil Imagery Fusion import

Since we know the source imagery does not contain fill data, we can create a custom mask based on the khvr virtual mosaic description file, then include this for import into Fusion. For this process, gepolymaskgen will need to know:

  1. The base image to create the mask file from (including location and raster dimensions)
  2. What feather to apply to the image
  3. If the image border is to be feathered (yes)
  4. What to name the output image

Due to how gepolymaskgen works, we will have to invert the output mask so the image edge is masked out instead of masking out the usable imagery. A khvr mosaic description file was created for the collection of JPEG2000 imagery files with the gevirtualraster command, and this will be used as our base image since it represents the overall size of the mosaic. The output mask will be named the same filename as the khvr file but with a -mask.tif extension so it may be read into Fusion Pro. Two masks will be built for this case which are identical except for the applied feathering value. Part 1 will build an edge-matched mask with a zero-edge feather to show all pixels of the source imagery while Part 2 will build an edge-matched mask with a 100-pixel feather.

Example A: Creating an edge-matched mask with no feather

The command template to build a zero-feather, edge-matched mask file with gepolymaskgen is:

gepolymaskgen --feather 0 --feather_border 0 --base_image imagery.tif --invert --output_mask imagery-mask.tif

Here is output from the console building a working mask file for the example imagery:

jcain@machine123:/gevol-local/src/$ time /opt/google/bin/gepolymaskgen --feather 0 --feather_border 0 --base_image brazil-squareimage-nofill.khvr --invert --output_mask brazil-squareimage-nofill-mask.tif

Fusion Notice: Feather 0

Fusion Notice: Feather border 0

Fusion Notice: Base image: brazil-squareimage-nofill.khvr

Fusion Notice: brazil-squareimage-nofill.khvr width: 20480 height: 20480

Fusion Notice: north: -7.646484e+00 south: -9.404297e+00 east: -5.387695e+01 west: -5.563477e+01

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Invert

Fusion Notice: Output mask: brazil-squareimage-nofill-mask.tif

Fusion Notice: Setting feather 0.

Fusion Notice: Feather border is off.

Fusion Notice: Setting base image brazil-squareimage-nofill.khvr.

Fusion Notice: Inverting current mask.

Fusion Notice: Saving mask to brazil-squareimage-nofill-mask.tif.

Fusion Notice: Writing alpha file brazil-squareimage-nofill-mask.tif

real 0m5.350s

user 0m2.670s

sys 0m2.260s

The resulting mask will be approximately 100MB in file size and will display all usable imagery in the areas of white pixels.

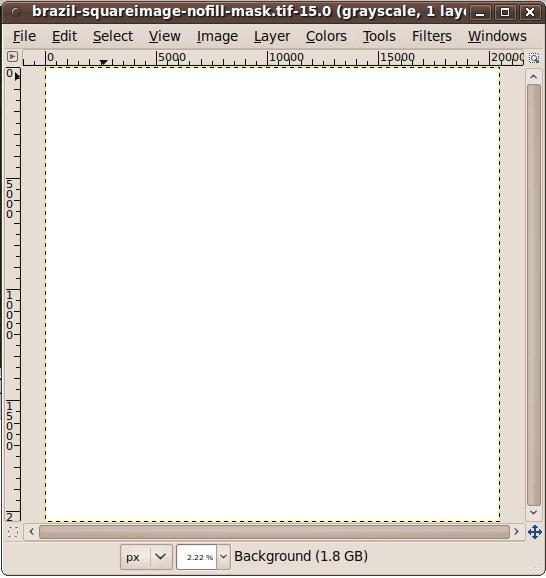

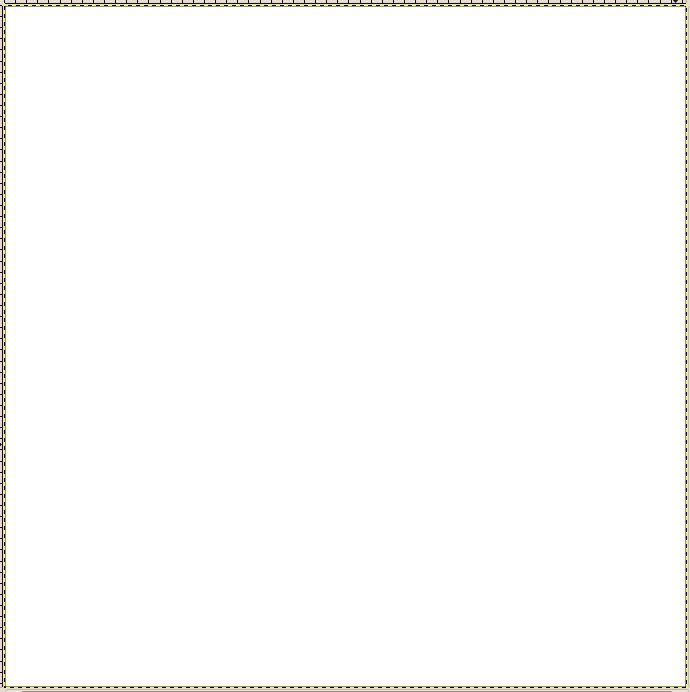

View of the built mask file within the GIMP photo editing tool with edge-to-edge display of all imagery pixels for the source file:

hidden masked diagram

View of the image resource after import into Fusion Pro with the custom mask:

Fusion Pro with custom mask

Once the mask file is built by gepolymaskgen, the source imagery may be imported into Fusion Pro by enabling the havemask masking mode in the Fusion GUI or specifying the --havemask option with the genewimageryresource or gemodifyimageryresource commands.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Example B: Creating an edge-matched mask with a fixed value feather

The same technique described in Part 1 may also be used for creating a mask that masks the imagery edge by a specified number of pixels regardless of the imagery along the edges of the image. In this case, suppose we have the same 15-meter resolution imagery for Brazil from Part 1, where each source image includes usable imagery in each pixel and does not include any fill data borders, and we wish to create a mask for the entire mosaic that feathers 100 pixels into the image.

The command template to build a 100-pixel feathered edge mask is:

gepolymaskgen --feather -100 --feather_border 1 --base_image source-image.tif --invert --output_mask source-image-mask.tif

The pixel value may be larger than 100 pixels or smaller than 100 pixels to expand the mask into the imagery or toward the imagery edge as desired for each image and terrain resource.

Here is an example output from gepolymaskgen building the 100-pixel feather edge-matched mask for the Brazil imagery:

jcain@machine123:/gevol-local/src/$ time /opt/google/bin/gepolymaskgen --feather -100 --feather_border 1 --base_image brazil-squareimage-nofill.khvr --invert --output_mask brazil-squareimage-nofill-mask.tif

Fusion Notice: Feather -100

Fusion Notice: Feather border 1

Fusion Notice: Base image: brazil-squareimage-nofill.khvr

Fusion Notice: brazil-squareimage-nofill.khvr width: 20480 height: 20480

Fusion Notice: north: -7.646484e+00 south: -9.404297e+00 east: -5.387695e+01 west: -5.563477e+01

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Invert

Fusion Notice: Output mask: brazil-squareimage-nofill-mask-100feather.tif

Fusion Notice: Setting feather -100.

Fusion Notice: Feather border is on.

Fusion Notice: Setting base image brazil-squareimage-nofill.khvr.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.10 - time left: 00:00:00 [CPU: 99 Mem: 975 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:10

Average tiles per second: 0.10

Fusion Notice: Inverting current mask.

Fusion Notice: Saving mask to brazil-squareimage-nofill-mask.tif.

Fusion Notice: Writing alpha file brazil-squareimage-nofill-mask.tif

real 0m16.985s

user 0m14.450s

sys 0m2.200s

The resulting mask file will be approximately 100MB in file size with a feathered edge 100 pixels from the edge inwards into the image resource.

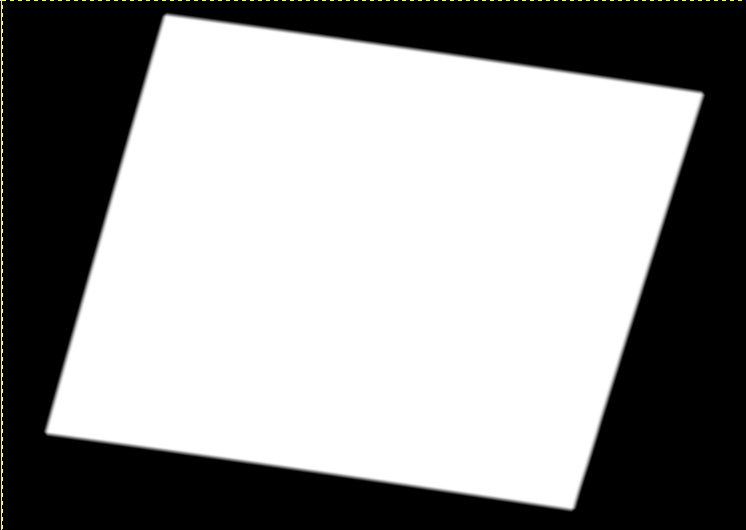

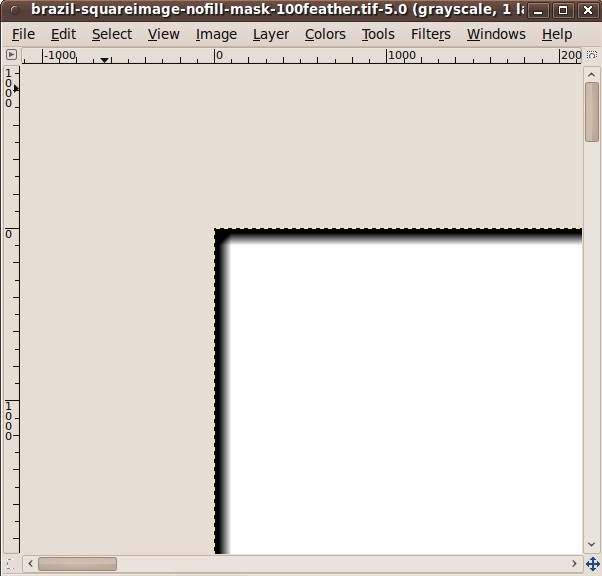

Resulting mask file from gepolymaskgen seen in the GIMP photo editing tool:

gepolymaskgen in gimp photo editor

The image resource now has a 100-pixel feather after Fusion import:

image with 100-pixel feather in Fusion

Once the mask file is built by gepolymaskgen, the source imagery may be imported into Fusion Pro by enabling the havemask masking mode in the Fusion GUI or specifying the --havemask option with the genewimageryresource or gemodifyimageryresource commands.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Case 2: Create custom masks for islands

Masking imagery around islands is another good use case for gepolymaskgen since it is often desirable to only show usable imagery for the island above sea level and to mask imagery at the coastlines. In this example, we have imagery for the island of Oahu for Hawaii, USA, where all imagery for the island is to be seen in the imagery project but all imagery from the coastline away from the island to the edge of the imagery is to be masked from view.

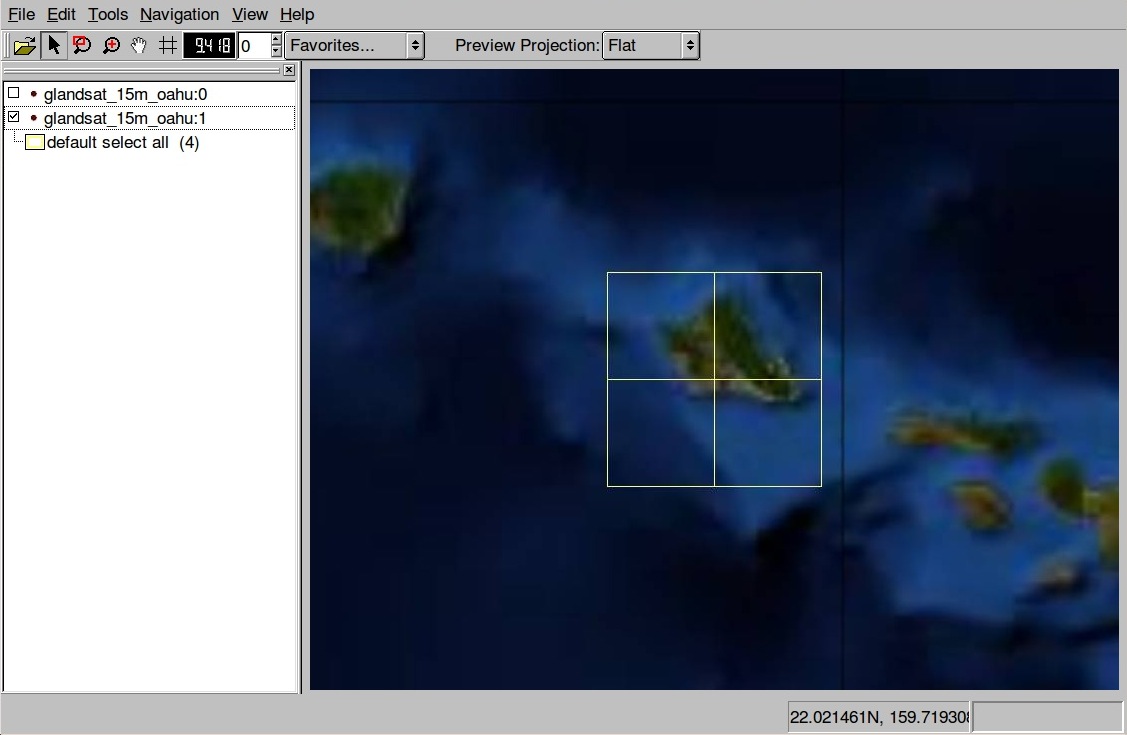

Fusion Preview window:

Fusion preview window

The Fusion Preview window above displays the overall dimensions and source file extents for four images creating an imagery mosaic for the island of Oahu, Hawaii, USA. A virtual raster description file (KHVR) was created for the four source files and loaded into the Fusion Preview window.

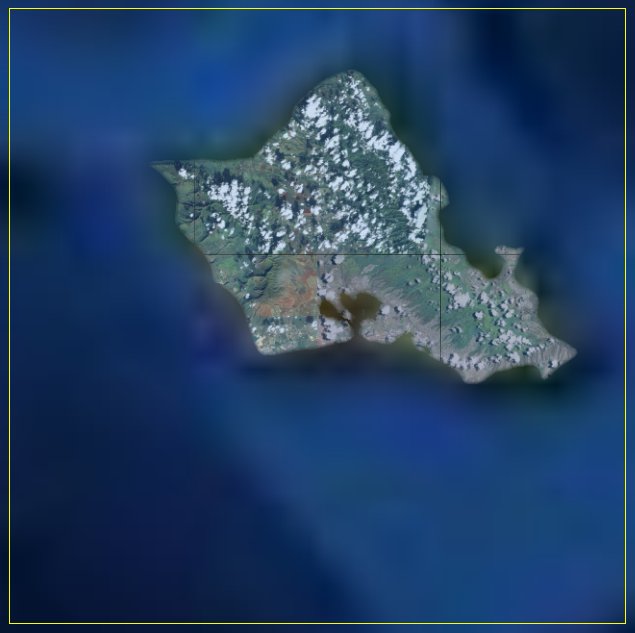

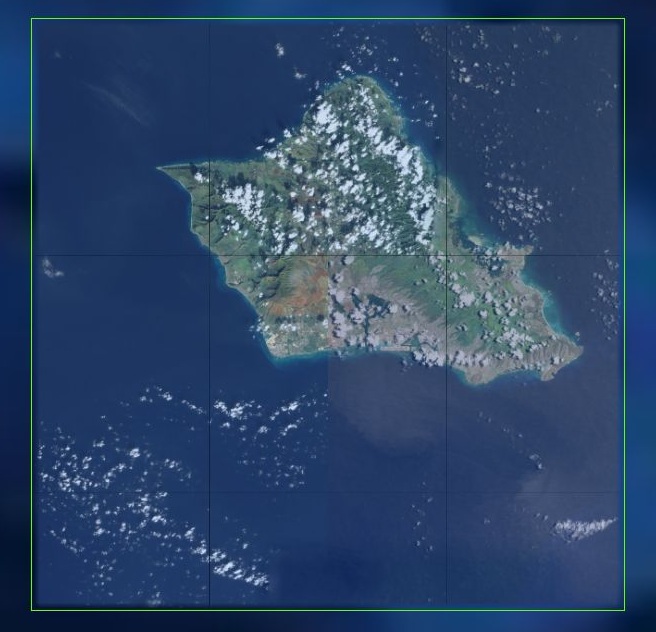

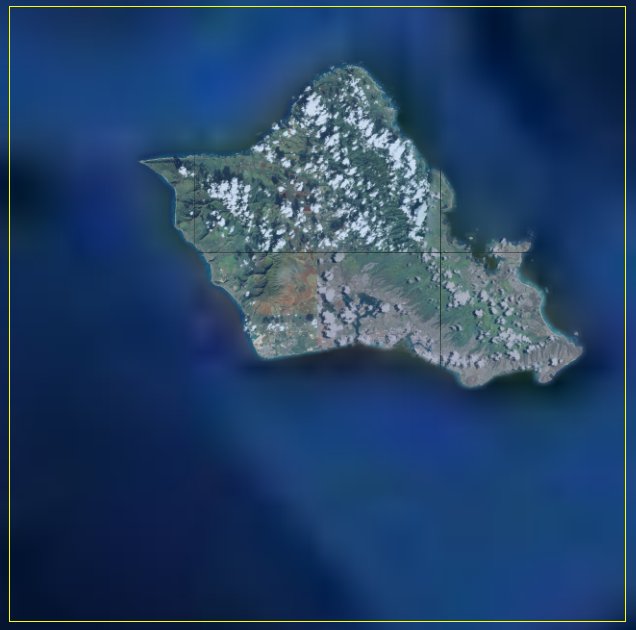

Importing the source imagery into Fusion Pro creates an image resource with imagery for the island and water (automask used):

Island and water automask in Fusion

Four JPEG2000 images were grouped into one virtual mosaic for the image resource and a khvr mosaic description file was built with gevirtualraster. To create the custom mask we need to:

  1. Direct gepolymaskgen to use the source khvr file as the base image to set the custom mask the same raster size and fully masks all imagery from view;
  2. Clip out the island of Oahu with a set of vector polygons so the island imagery will be visible;
  3. Feather along the specified polygon coastlines to facilitate smooth blending with other image resources (feather = 100);
  4. Write out the custom mask file.

Two examples will be included for this case demonstrating the effect of positive and negative feather values for feathering along the shoreline. Generally speaking, a positive feather value will erode from the mask line inward to show less visible imagery while a negative feather value will draw away from the mask line to show more visible imagery.

Example A: Create a custom edge-matched mask for an island that masks into the land

The command template for creating a custom mask for an island with a positive value feather is:

gepolymaskgen --base_image imagery.tif --feather 100 --or_mask world_coastlines_4326.shp --output_mask imagery-mask.tif

The larger or smaller pixel value may be specified to expand the mask further from the coastline into the visible imagery (larger number), or to stay closer to the coastline.

Example console output is included below:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_image glandsat_15m_oahu.khvr --feather 100 --or_mask world_coastlines_4326.shp --output_mask glandsat_15m_oahu-100mask.tif

Fusion Notice: Base image: glandsat_15m_oahu.khvr

Fusion Notice: glandsat_15m_oahu.khvr width: 10240 height: 10240

Fusion Notice: north: 2.179688e+01 south: 2.091797e+01 east: -1.575879e+02 west: -1.584668e+02

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Feather 100

Fusion Notice: OR mask: world_coastlines_4326.shp

Fusion Notice: Output mask: glandsat_15m_oahu-100mask.tif

Fusion Notice: Setting base image glandsat_15m_oahu.khvr.

Fusion Notice: Setting feather 100.

Fusion Notice: Writing alpha file glandsat_15m_oahu-100mask.tif

Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 world_coastlines_4326.shp glandsat_15m_oahu-100mask.tif

0...10...20...30...40...50...60...70...80...90...100 - done.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.38 - time left: 00:00:00 [CPU: 15 Mem: 554 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:03

Average tiles per second: 0.38

Fusion Notice: OR-ing mask with new mask.

Fusion Notice: Saving mask to glandsat_15m_oahu-100mask.tif.

Fusion Notice: Writing alpha file glandsat_15m_oahu-100mask.tif

real 0m31.757s

user 0m28.390s

sys 0m3.020s

The resulting mask file is approximately 400MB in filesize. Screenshots of the output mask and resulting Fusion image resource may be seen below.

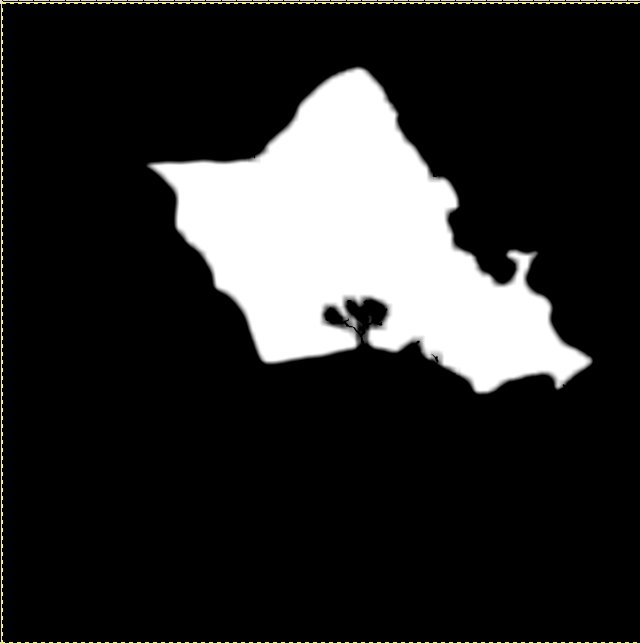

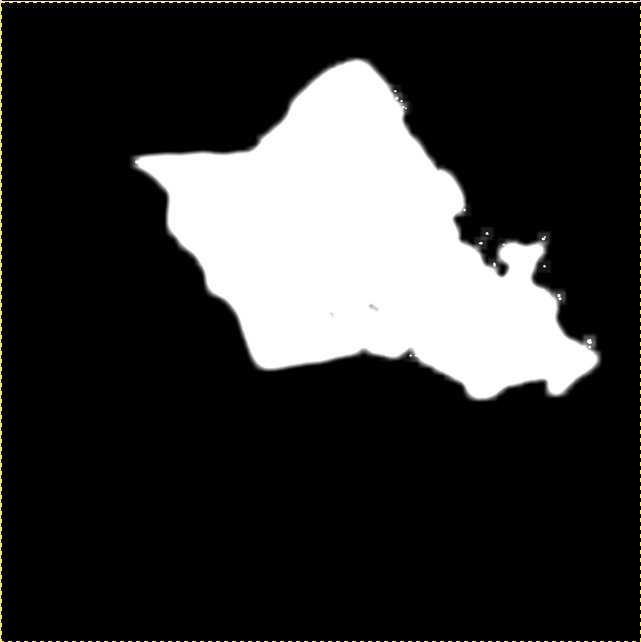

View of the mask with a 100 pixel feather as seen in the GIMP photo editor:

Mask with 100 pixel feather in GIMP

View of the Oahu, Hawaii, USA imagery in Fusion Preview after importing the custom mask with the image resource:

Custom

The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Example B: Create a custom edge-matched mask for an island that masks into the water

This example uses the same source imagery as Example A but a negative pixel value is provided for the feather value to expand the mask feather away from the shoreline outward into the water.

The command template for this example is:

gepolymaskgen --base_image imagery.khvr --feather -100 --or_mask world_coastlines_4326.shp --output_mask imagery-mask.tif

Larger or smaller negative feather values may be specified with the gepolymaskgencommand to expand farther away from the coastline mask or closer to the coastline mask as desired.

Example output for creating the mask and screenshots are included below:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_image glandsat_15m_oahu.khvr --feather -100 --or_mask world_coastlines_4326.shp --output_mask glandsat_15m_oahu-minus100mask.tif

Fusion Notice: Base image: glandsat_15m_oahu.khvr

Fusion Notice: glandsat_15m_oahu.khvr width: 10240 height: 10240

Fusion Notice: north: 2.179688e+01 south: 2.091797e+01 east: -1.575879e+02 west: -1.584668e+02

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Feather -100

Fusion Notice: OR mask: world_coastlines_4326.shp

Fusion Notice: Output mask: glandsat_15m_oahu-minus100mask.tif

Fusion Notice: Setting base image glandsat_15m_oahu.khvr.

Fusion Notice: Setting feather -100.

Fusion Notice: Writing alpha file glandsat_15m_oahu-minus100mask.tif

Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 world_coastlines_4326.shp glandsat_15m_oahu-minus100mask.tif

0...10...20...30...40...50...60...70...80...90...100 - done.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.38 - time left: 00:00:00 [CPU: 16 Mem: 554 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:03

Average tiles per second: 0.38

Fusion Notice: OR-ing mask with new mask.

Fusion Notice: Saving mask to glandsat_15m_oahu-minus100mask.tif.

Fusion Notice: Writing alpha file glandsat_15m_oahu-minus100mask.tif

real 0m31.621s

user 0m28.510s

sys 0m3.100s

The resulting mask file is approximately 400MB in filesize. Screenshots of the output mask and resulting Fusion image resource may be seen below.

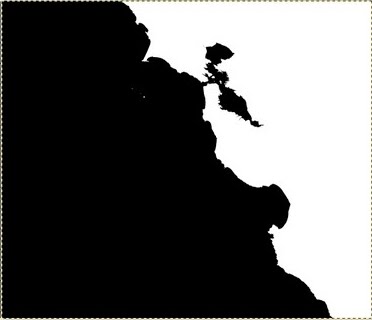

View of the mask file with a -100 pixel feather as seen in the GIMP photo editor:

Mask file of Oahu Hawaii in GIMP

View of the Oahu, Hawaii, USA imagery in Fusion Preview after importing the custom mask with the image resource:

Oahu Hawaii in Fusion Preview

The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Case 3: Create custom masks with coastlines and shared edges with other imagery resources

Creating custom masks for imagery resources bordering coastlines is a little more challenging since a set of vector polygons are needed to mask the desired imagery to the coastline, and it is necessary to determine what feather values to apply to the coastline and the external edges of the mask. We will first see the imagery we will be working with in this example.

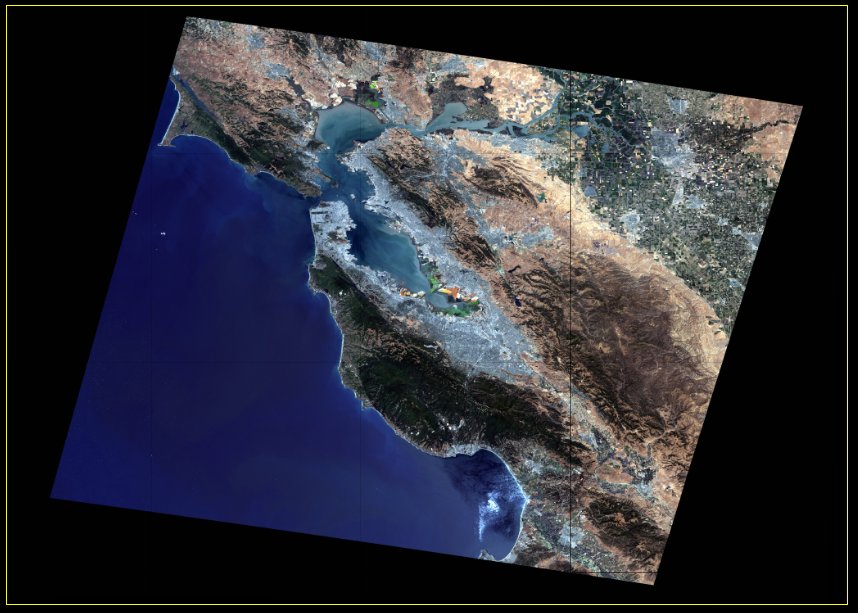

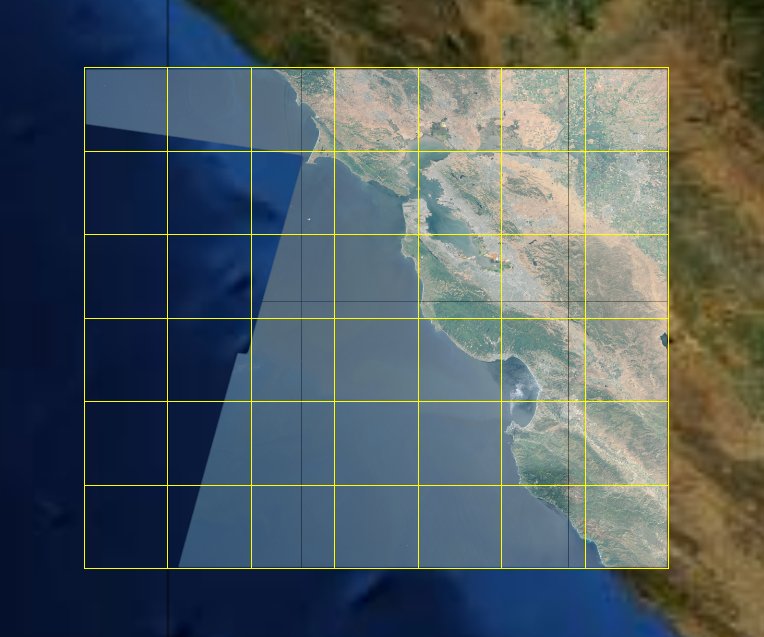

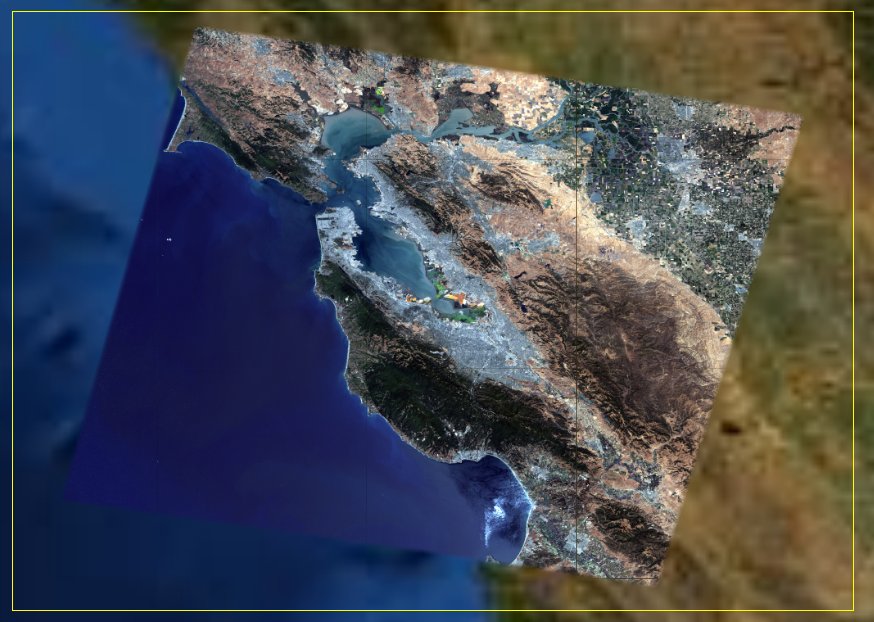

View from the Fusion Preview GUI with imagery for California, USA along the coastline:

Fusiin Preview GUI in California

Forty-two source files of 15-meter imagery have been grouped into one virtual raster to build a new imagery resource. The source images along the interior of California fully contain usable imagery and do not include fill data; however, imagery along the Pacific Ocean includes water. The goal will be to mask the water from view while displaying imagery for the land. The workflow will be as follows:

  1. Create the overall mask for the image
  2. Apply a set of coastal polygons to demarcate the coastline
  3. Feather the coastline and apply the feather to the mask border as well
  4. Write out the mask file

In this case, we will create three different types of masks with coastline data - one where the coastlines and edges have the same feathering, one where the coastlines and edges have different feathering values, and one where the coastline is feathered but the edges are not feathered.

Example A: Create an edge-matched custom mask that feathers coastlines and external edges with the same feather value

This example will build a mask file that masks visible imagery to a specified coastline polygon - described by a source vector file in ESRI Shapefile format - and hides all ocean imagery from view. The source data are comprised of 42 images in a rectangle with the northernmost and easternmost edges being a border for another image resource. A consistent feather value (300 pixels) will be applied to both the coastlines and the external edges of the imagery with gepolymaskgen.

The command template to build this type of mask is:

gepolymaskgen --base_image imagery.khvr --invert --feather -300 --feather_border 1 --and_neg_mask world_coastlines_4326.shp --invert --output_mask imagery-mask.tif

Here is an example output to build this type of mask for the 15-meter resolution California imagery:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time /opt/google/bin/gepolymaskgen --base_image glandsat_15m_california_bay_area.khvr --invert --feather -300 --feather_border 1 --and_neg_mask world_coastlines_4326.shp --invert --output_mask glandsat_15m_california_bay_area-coastline-exampleA.tif

Fusion Notice: Base image: glandsat_15m_california_bay_area.khvr

Fusion Notice: glandsat_15m_california_bay_area.khvr width: 35840 height: 30720

Fusion Notice: north: 3.849609e+01 south: 3.585938e+01 east: -1.211133e+02 west: -1.241895e+02

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Invert

Fusion Notice: Feather -300

Fusion Notice: Feather border 1

Fusion Notice: AND mask: world_coastlines_4326.shp

Fusion Notice: Invert

Fusion Notice: Output mask: glandsat_15m_california_bay_area-coastline-exampleA.tif

Fusion Notice: Setting base image glandsat_15m_california_bay_area.khvr.

Fusion Notice: Inverting current mask.

Fusion Notice: Setting feather -300.

Fusion Notice: Feather border is on.

Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-coastline-exampleA.tif

Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 world_coastlines_4326.shp glandsat_15m_california_bay_area-coastline-exampleA.tif

0...10...20...30...40...50...60...70...80...90...100 - done.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 19 Mem: 3844 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:28

Average tiles per second: 0.04

Fusion Notice: AND-ing mask with new mask.

Fusion Notice: Inverting current mask.

Fusion Notice: Saving mask to glandsat_15m_california_bay_area-coastline-exampleA.tif.

Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-coastline-exampleA.tif

real 3m55.820s

user 3m39.810s

sys 0m15.650s

The resulting mask file is approximately 1GB in filesize. Screenshot of the mask from the GIMP photo editing tool and the resulting image resource after the mask is applied are available below.

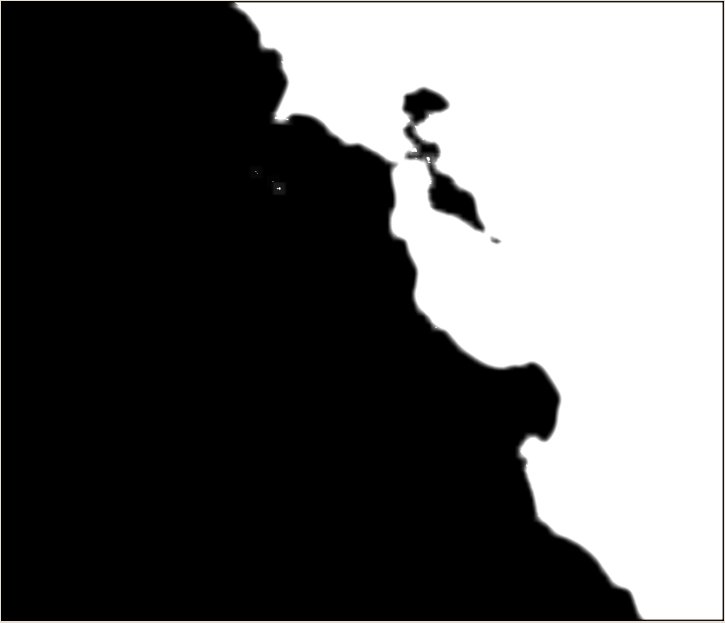

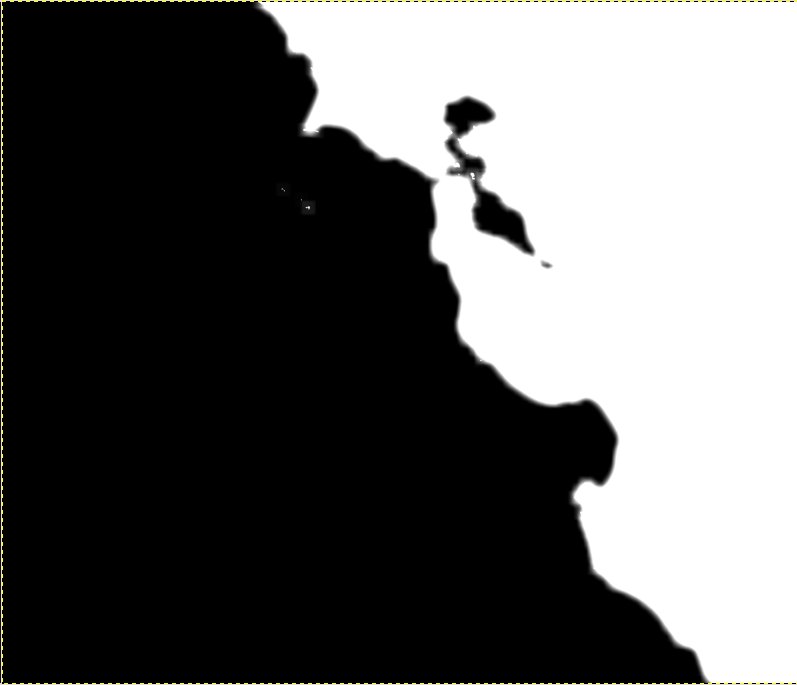

View of the mask file built in Example A as seen in the GIMP photo editing tool:

Example A mask file in GIMP

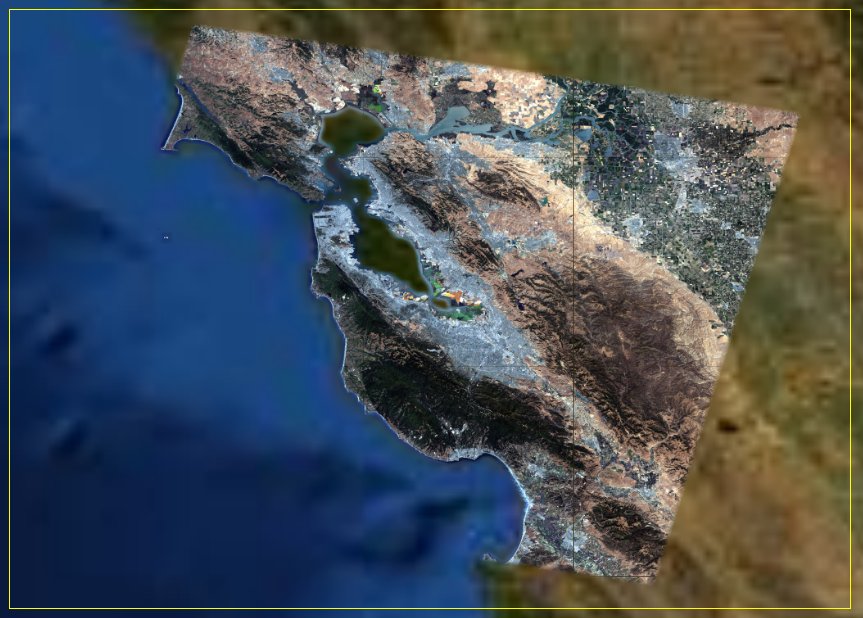

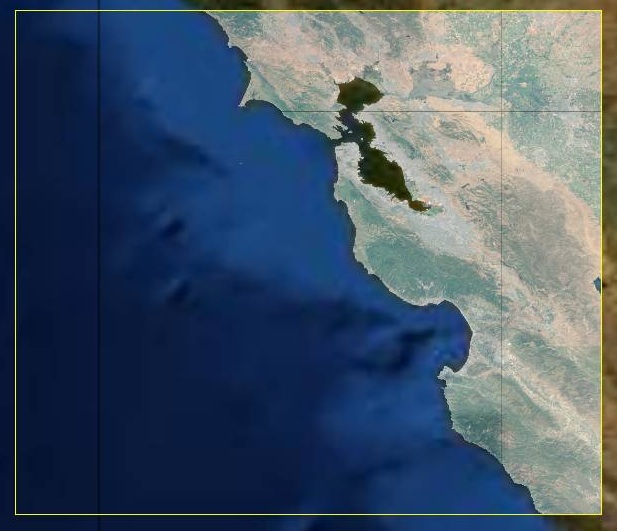

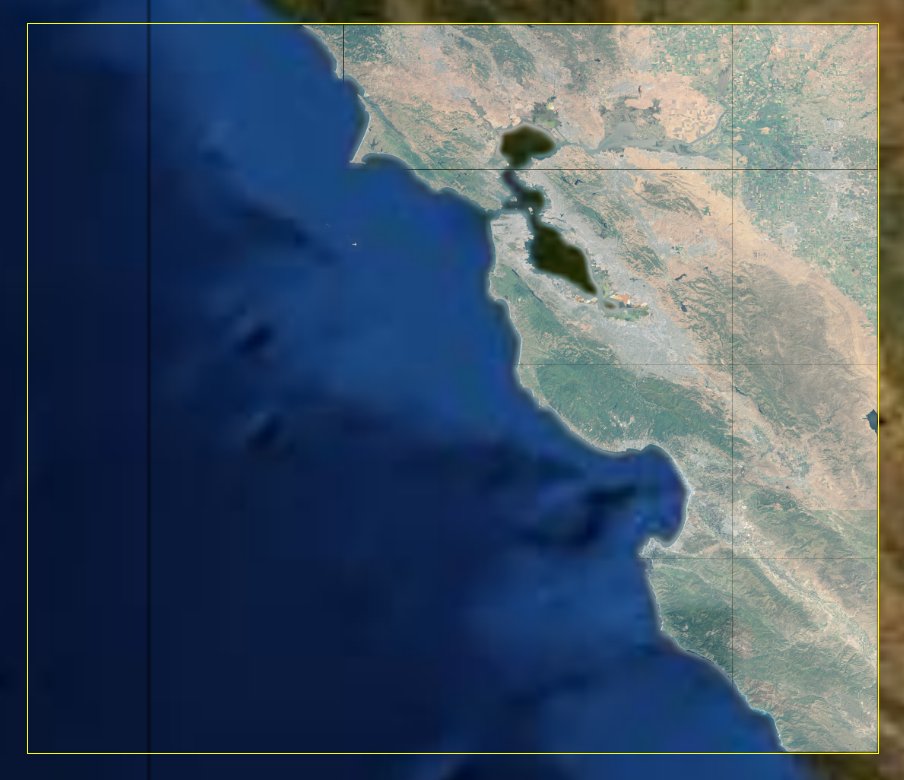

View of the imagery resource within the Fusion Preview window after the custom mask is imported:

Finished image after custom mask import

The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Example B: Create an edge-matched custom mask with feathered coastlines and feathered external edges

This example will build a mask file that masks visible imagery to a specified coastline polygon - described by a source vector file in ESRI Shapefile format - and hides all ocean imagery from view. The source data are comprised of 42 images in a rectangle with the northernmost and easternmost edges being a border for another image resource. A feather value of -300 pixels will be applied to the coastlines while a -100 pixel feather will be applied to the external imagery edges with gepolymaskgen. This use case is more complex in that three separate steps are needed to create twp separate masks - one which includes the feather border for the overall image, one for the coastlines - and then one operation to merge the mask files together.

The command templates are as follows:

  1. Create a ‘picture frame’ mask for the overall image:

    gepolymaskgen --feather -100 --feather_border 1 --base_image source_image.tif --output_mask borderfeather-mask.tif

  2. Create a coastline mask:

    gepolymaskgen --base_image source_image.tif --feather -300 --or_mask world_coastlines_4326.shp --output coastline-mask.tif

  3. Merge the two masks together into the final mask:

    gepolymaskgen --base_mask coastline-mask.tif --and_neg_mask borderfeather-mask.tif --output_mask source_image-mask.tif

Screen shots of each mask file generated by the three steps are included below as a reference.

Picture frame border mask:

picture frame border mask

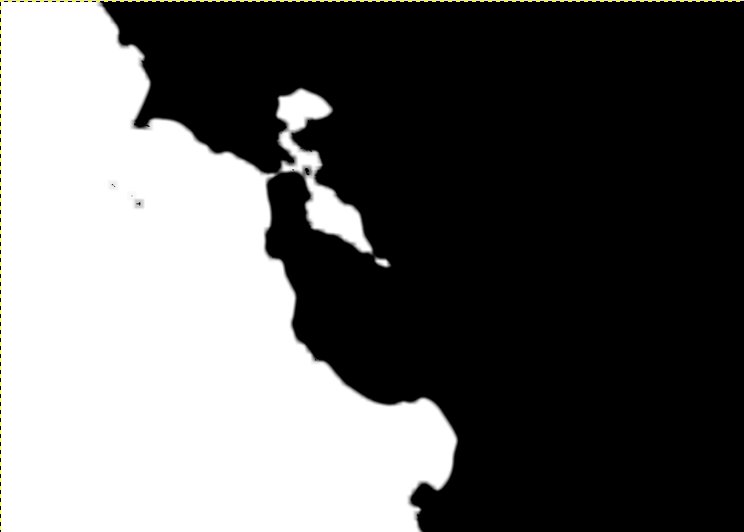

Coastline mask:

Example A mask file in GIMP

Finished, merged mask of coastline and border feather:

finished mask of coastline and border feather

Console output for building these masks are included below for reference along with the time to build and output file sizes for each of the three masks.

  1. Create a ‘picture frame’ mask for the overall image:

    jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --feather -100 --feather_border 1 --base_image glandsat_15m_california_bay_area.khvr --output_mask california_borderfeather-mask.tif

    Fusion Notice: Feather -100

    Fusion Notice: Feather border 1

    Fusion Notice: Base image: glandsat_15m_california_bay_area.khvr

    Fusion Notice: glandsat_15m_california_bay_area.khvr width: 35840 height: 30720

    Fusion Notice: north: 3.849609e+01 south: 3.585938e+01 east: -1.211133e+02 west: -1.241895e+02

    Fusion Notice: File type: KHM/Keyhole Mosaic

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Output mask: california_borderfeather-mask.tif

    Fusion Notice: Setting feather -100.

    Fusion Notice: Feather border is on.

    Fusion Notice: Setting base image glandsat_15m_california_bay_area.khvr.

    Total tiles to process: 1

    Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 98 Mem: 2294 MB PF: 0]

    Processed 1 tiles

    Total time to process: 00:00:27

    Average tiles per second: 0.04

    Fusion Notice: Saving mask to california_borderfeather-mask.tif.

    Fusion Notice: Writing alpha file california_borderfeather-mask.tif

    real 0m40.672s

    user 0m36.000s

    sys 0m4.300s

    The resulting mask file is approximately 1 GB in file size.

  2. Create a coastline mask:

    jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_image glandsat_15m_california_bay_area.khvr --feather -300 --or_mask world_coastlines_4326.shp --output california_coastline-mask.tif

    Fusion Notice: Base image: glandsat_15m_california_bay_area.khvr

    Fusion Notice: glandsat_15m_california_bay_area.khvr width: 35840 height: 30720

    Fusion Notice: north: 3.849609e+01 south: 3.585938e+01 east: -1.211133e+02 west: -1.241895e+02

    Fusion Notice: File type: KHM/Keyhole Mosaic

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Feather -300

    Fusion Notice: OR mask: world_coastlines_4326.shp

    Fusion Notice: Output mask: california_coastline-mask.tif

    Fusion Notice: Setting base image glandsat_15m_california_bay_area.khvr.

    Fusion Notice: Setting feather -300.

    Fusion Notice: Writing alpha file california_coastline-mask.tif

    Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 world_coastlines_4326.shp california_coastline-mask.tif

    0...10...20...30...40...50...60...70...80...90...100 - done.

    Total tiles to process: 1

    Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 19 Mem: 3844 MB PF: 0]

    Processed 1 tiles

    Total time to process: 00:00:28

    Average tiles per second: 0.04

    Fusion Notice: OR-ing mask with new mask.

    Fusion Notice: Saving mask to california_coastline-mask.tif.

    Fusion Notice: Writing alpha file california_coastline-mask.tif

    real 3m56.730s

    user 3m41.010s

    sys 0m15.340s

    The resulting mask file is approximately 1 GB in file size.

  3. Merge the two masks together into the final mask:

    jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_mask california_coastline-mask.tif --and_neg_mask california_borderfeather-mask.tif --output_mask glandsat_15m_california_bay_area-mask.tif

    Fusion Notice: Base mask: california_coastline-mask.tif

    Fusion Notice: california_coastline-mask.tif width: 35840 height: 30720

    Fusion Notice: north: 3.849609e+01 south: 3.585938e+01 east: -1.211133e+02 west: -1.241895e+02

    Fusion Notice: File type: GTiff/GeoTIFF

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: AND mask: california_borderfeather-mask.tif

    Fusion Notice: Output mask: glandsat_15m_california_bay_area-mask.tif

    Fusion Notice: Setting base mask california_coastline-mask.tif.

    Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-mask.tif

    Fusion Notice: AND-ing mask with new mask.

    Fusion Notice: Saving mask to glandsat_15m_california_bay_area-mask.tif.

    Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-mask.tif

    real 0m23.029s

    user 0m15.690s

    sys 0m7.300s

    The resulting mask file is approximately 1 GB in file size.

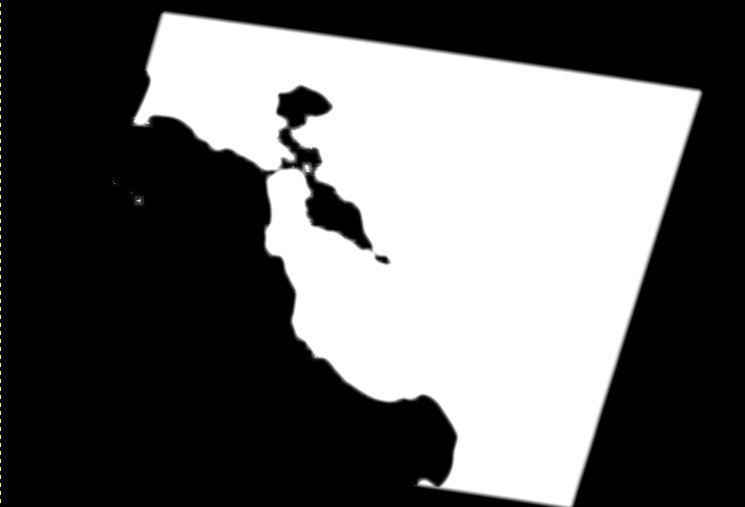

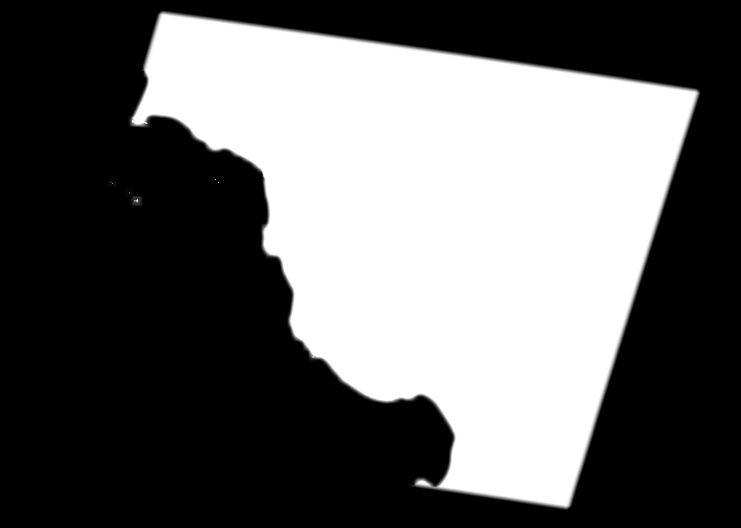

    View of finished mask file feathering the coastlines and external edges of the image resource:

    finished mask of coastline and border feather

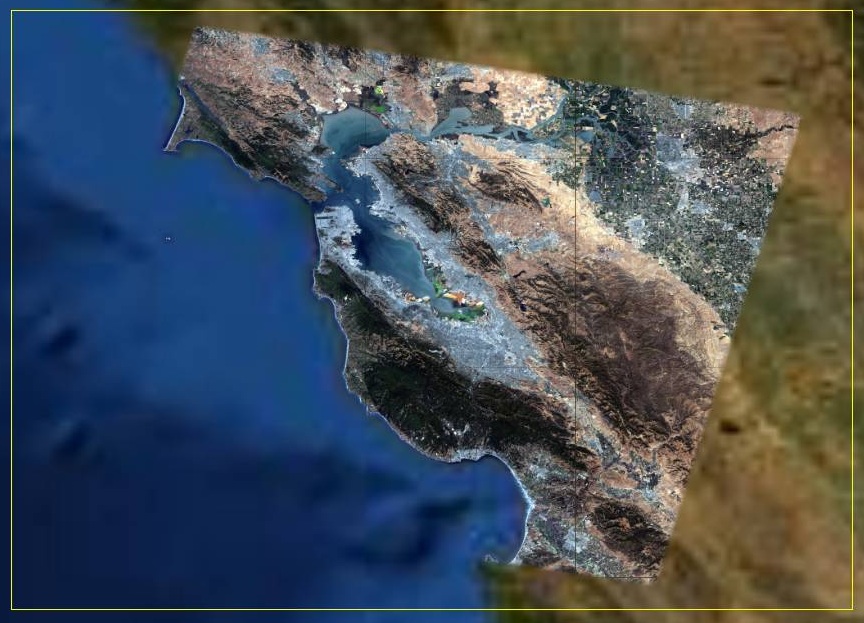

    View of finished image resource after importing custom mask:

    Finished image after custom mask import

    The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

    Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Example C: Feathered internal coastline and no-feather external edge

This example will build a mask file that masks visible imagery to a specified coastline polygon - described by a source vector file in ESRI Shapefile format - and hides all ocean imagery from view. The source data are comprised of 42 images in a rectangle with the northernmost and easternmost edges being a border for another image resource. A feather value (300 pixels) will be applied to the coastlines while the external imagery edges will have a zero-feather edge.

The command template for this mask is:

gepolymaskgen --base_image source_imagery.tif --invert --feather -300 --feather_border 0 --and_neg_mask world_coastlines_4326.shp --invert --output_mask source_imagery-mask.tif

Console output for building this mask is included below for reference:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_image glandsat_15m_california_bay_area.khvr --invert --feather -300 --feather_border 0 --and_neg_mask world_coastlines_4326.shp --invert --output_mask glandsat_15m_california_bay_area-mask.tif

Fusion Notice: Base image: glandsat_15m_california_bay_area.khvr

Fusion Notice: glandsat_15m_california_bay_area.khvr width: 35840 height: 30720

Fusion Notice: north: 3.849609e+01 south: 3.585938e+01 east: -1.211133e+02 west: -1.241895e+02

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Invert

Fusion Notice: Feather -300

Fusion Notice: Feather border 0

Fusion Notice: AND mask: world_coastlines_4326.shp

Fusion Notice: Invert

Fusion Notice: Output mask: glandsat_15m_california_bay_area-mask.tif

Fusion Notice: Setting base image glandsat_15m_california_bay_area.khvr.

Fusion Notice: Inverting current mask.

Fusion Notice: Setting feather -300.

Fusion Notice: Feather border is off.

Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-mask.tif

Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 world_coastlines_4326.shp glandsat_15m_california_bay_area-mask.tif

0...10...20...30...40...50...60...70...80...90...100 - done.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 19 Mem: 3844 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:28

Average tiles per second: 0.04

Fusion Notice: AND-ing mask with new mask.

Fusion Notice: Inverting current mask.

Fusion Notice: Saving mask to glandsat_15m_california_bay_area-mask.tif.

Fusion Notice: Writing alpha file glandsat_15m_california_bay_area-mask.tif

real 3m55.201s

user 3m40.410s

sys 0m14.540s

The resulting mask will be approximately 1 GB in file size.

View of the finished mask within the GIMP photo editing tool:

finished mask in GIMP

View of the imagery resource within the Fusion Preview window after importing the custom mask:

Fusion preview window with custom mark import

The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Case 4: Masking out sections within an image resource

gepolymaskgen is capable of masking out sections within a source image in addition to masking external edges of the imagery. This is similar to the hole checking option with the gemaskgen tool which can automatically scan an image resource to seek fill data within the image resource. The main difference is gepolymaskgen will only mask out user-specified sections of the imagery. This example case will build on the principles discussed in Case 1 where a fixed feather value edge mask will be made for a mosaic with imagery to the edges, and additionally demonstrate removing (masking) internal portions of an image resource from view with a KML file created in Google Earth. Let’s first see a screenshot of imagery used for this example.

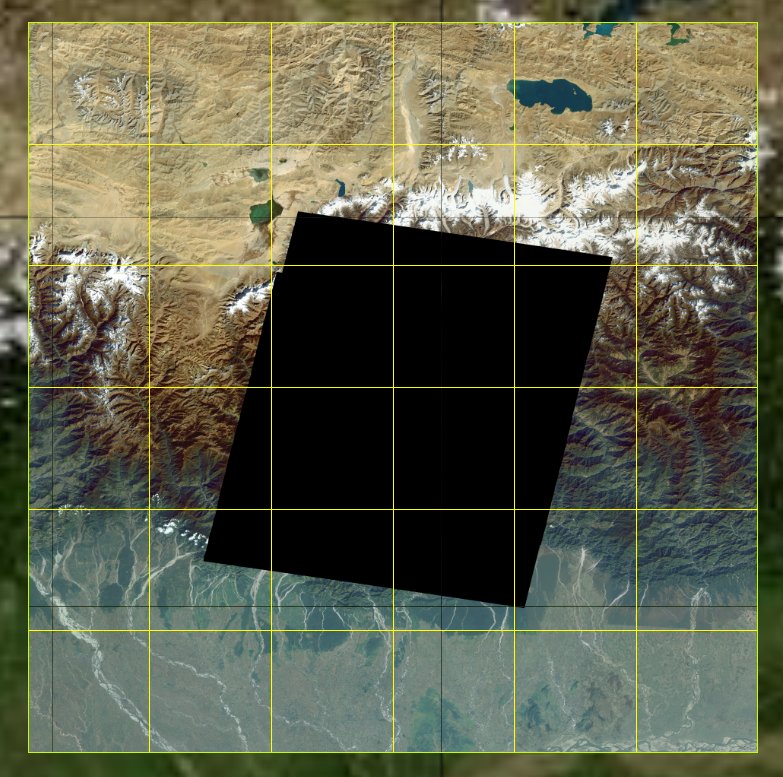

View of image resource in Fusion Preview after import with the automask tool:

image in Fusion with automask

Boundaries for the imported source files (khvr) are overlaid on the image for reference.

The workflow for this example is different from the others since we need a KML file to specify which area in the image to remove from view. The general workflow will be:

  1. Import the imagery into GEE Fusion Pro and build into an imagery project.
  2. Build and publish the imagery into a flyable 3D database.
  3. View the 3D database with Google Earth EC to QA the data.
  4. Draw an enclosed polygon in Google Earth EC that would mask the missing area of imagery from view.
  5. Build the custom mask with gepolymaskgen to correctly feather the imagery edges and mask the missing imagery.
  6. Import the custom mask with the image resource.

Examples of what the imagery resource looks like as viewed in Google Earth EC are included below.

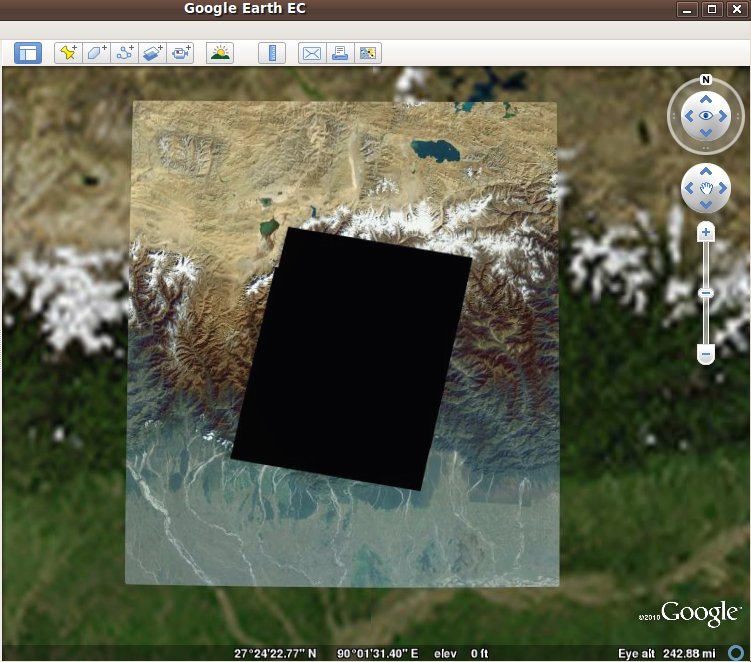

This image demonstrates how the image resource appears with the area of missing imagery:

Missing imagery in GEEC

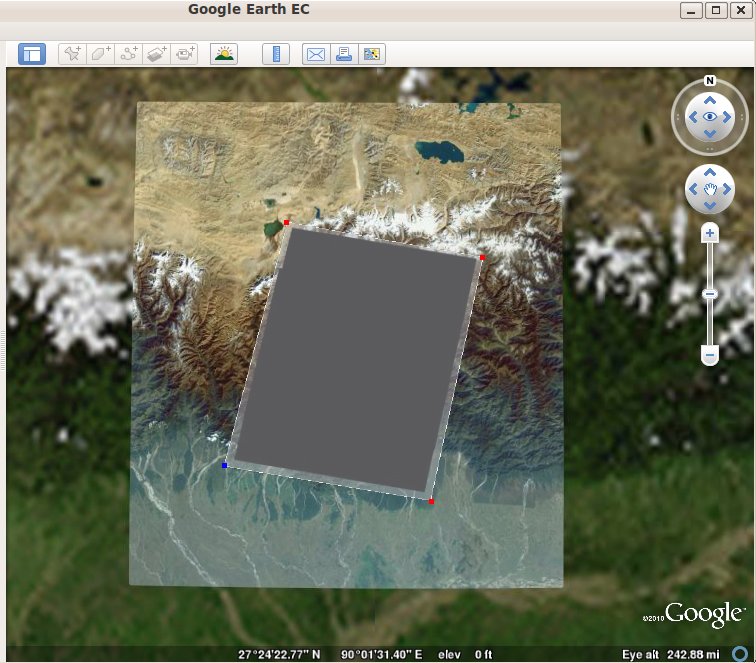

This image is a screenshot after a polygon was drawn over the entire area of missing imagery:

Polygon on mising imagery

The polygon area was set to 50% opacity in order to show the polygon fully covers the area of missing imagery with a little overlap into the usable imagery. This polygon will be stored in the Places panel of Google Earth EC and must be saved out from Google Earth as an independent KML file that can then be utilized with gepolymaskgen.

Note

Additional information about creating polygons within Google Earth is also freely available with the Google Earth Outreach tutorials, directly accessible at http://earth.google.com/outreach/tutorial_annotate.html#addpolygons.

Tip

Each polygon correction should be saved out as a KML file directly (four polygons saved to four separate KML files) as these will be separate mask operations within gepolymaskgen.

Example A: Creating an edge-matched mask with a feathered edge and masking missing internal imagery in one step

This example will create the custom mask in one command sequence by first creating a feathered edge mask based on the source image (--base_image) and then applying a KML file to mask out the area of missing imagery.

The command template to create the mask, in one step, is:

gepolymaskgen --feather -100 --feather_border 1 --base_image source_imagery.khvr --invert --feather 50 --and_neg_mask missing-imagery-area.kml --output_mask source_imagery-mask.tif

Console output for creating the mask file in one step is as follows:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --feather -100 --feather_border 1 --base_image glandsat_15m_bhutan_missing_imagery.khvr --invert --feather 50 --and_neg_mask bhutan.kml --output_mask glandsat_15m_bhutan_missing_imagery-mask.tif

Fusion Notice: Feather -100

Fusion Notice: Feather border 1

Fusion Notice: Base image: glandsat_15m_bhutan_missing_imagery.khvr

Fusion Notice: glandsat_15m_bhutan_missing_imagery.khvr width: 30720 height: 30720

Fusion Notice: north: 2.882812e+01 south: 2.619141e+01 east: 9.114258e+01 west: 8.850586e+01

Fusion Notice: File type: KHM/Keyhole Mosaic

Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

Fusion Notice: Invert

Fusion Notice: Feather 50

Fusion Notice: AND mask: bhutan.kml

Fusion Notice: Output mask: glandsat_15m_bhutan_missing_imagery-mask.tif

Fusion Notice: Setting feather -100.

Fusion Notice: Feather border is on.

Fusion Notice: Setting base image glandsat_15m_bhutan_missing_imagery.khvr.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 99 Mem: 1990 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:23

Average tiles per second: 0.04

Fusion Notice: Inverting current mask.

Fusion Notice: Setting feather 50.

Fusion Notice: Writing alpha file glandsat_15m_bhutan_missing_imagery-mask.tif

Fusion Notice: Executing: ogr2ogr -t_srs 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]' /tmp/p14999QFR8Mx/tmp.shp bhutan.kml

Warning 6: Normalized/laundered field name: 'Description' to 'Descriptio'

Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l tmp /tmp/p14999QFR8Mx/tmp.shp glandsat_15m_bhutan_missing_imagery-mask.tif

0...10...20...30...40...50...60...70...80...90...100 - done.

Total tiles to process: 1

Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 93 Mem: 3262 MB PF: 0]

Processed 1 tiles

Total time to process: 00:00:23

Average tiles per second: 0.04

Fusion Notice: AND-ing mask with new mask.

Fusion Notice: Saving mask to glandsat_15m_bhutan_missing_imagery-mask.tif.

Fusion Notice: Writing alpha file glandsat_15m_bhutan_missing_imagery-mask.tif

real 1m24.041s

user 1m11.650s

sys 0m11.990s

The resulting mask file will be approximately 900 MB in file size. Screenshots of the finished mask and the resulting image resource are included below.

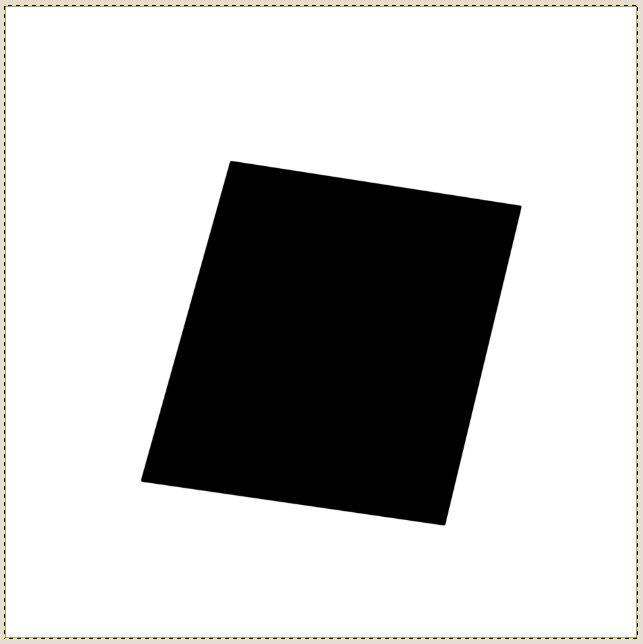

Custom mask which masks missing interior imagery with feathered edge as viewed in the GIMP photo editing tool:

Custom mask with missing imagery in GIMP

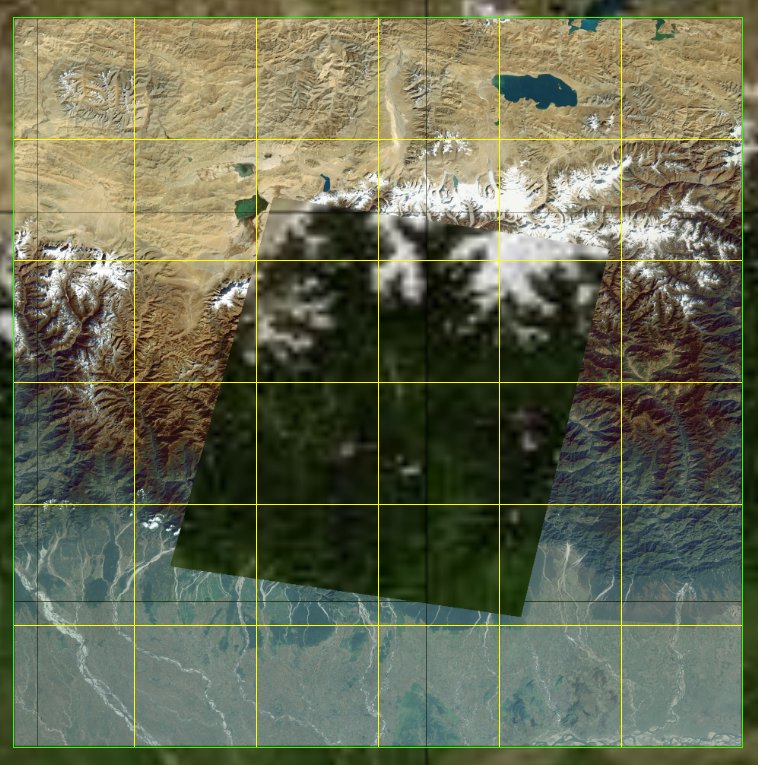

Resulting image resource built by Fusion after the custom mask is imported. Lower resolution imagery from the resource under the 15-meter imagery will be visible from the internal area masked from view:

Image in Fusion after custom mask import

The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Note

This mask file could also be created in two steps as well - the first step to create the base mask file (picture frame) that provides a feathered edge for the overall image, and the second step to apply the internal mask with the specified KML file. Multiple areas may be removed from the internal portion of the image mask as separate operations.

Example B: Creating an edge-matched mask with a feathered edge and masking missing internal imagery in two steps

This example will create the custom mask in two command sequences: in the first step a feathered edge mask based on the source image (--base_image) is built; and in the second step, a KML file to mask out the area of missing imagery is applied to the mask built in the first step.

The command templates to create the mask are:

  1. Create the edge mask (picture frame):

    gepolymaskgen --feather -100 --feather_border 1 --base_image source_imagery.khvr --invert --output_mask source_imagery-basemask.tif

  2. Mask the area of missing imagery from the mask built in the previous step:

    gepolymaskgen --base_mask source_imagery-basemask.tif --feather 50 --and_neg_mask missing-imagery-area.kml --output_mask source_imagery-mask.tif

Console output for creating the mask file in one step is as follows:

  1. Create the edge mask (picture frame):

    jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --feather -100 --feather_border 1 --base_image glandsat_15m_bhutan_missing_imagery.khvr --invert --output_mask glandsat_15m_bhutan_missing_imagery-basemask.tif

    Fusion Notice: Feather -100

    Fusion Notice: Feather border 1

    Fusion Notice: Base image: glandsat_15m_bhutan_missing_imagery.khvr

    Fusion Notice: glandsat_15m_bhutan_missing_imagery.khvr width: 30720 height: 30720

    Fusion Notice: north: 2.882812e+01 south: 2.619141e+01 east: 9.114258e+01 west: 8.850586e+01

    Fusion Notice: File type: KHM/Keyhole Mosaic

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Invert

    Fusion Notice: Output mask: glandsat_15m_bhutan_missing_imagery-basemask.tif

    Fusion Notice: Setting feather -100.

    Fusion Notice: Feather border is on.

    Fusion Notice: Setting base image glandsat_15m_bhutan_missing_imagery.khvr.

    Total tiles to process: 1

    Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 97 Mem: 1990 MB PF: 0]

    Processed 1 tiles

    Total time to process: 00:00:23

    Average tiles per second: 0.04

    Fusion Notice: Inverting current mask.

    Fusion Notice: Saving mask to glandsat_15m_bhutan_missing_imagery-basemask.tif.

    Fusion Notice: Writing alpha file glandsat_15m_bhutan_missing_imagery-basemask.tif

    real 0m36.297s

    user 0m32.370s

    sys 0m3.620s

    The resulting mask will be approximately 900 MB in filesize.

    Edge mask created with gepolymaskgen as viewed in the GIMP photo editing tool:

    gepolymaskgen Edge mask in GIMP

  2. Mask the area of missing imagery from the mask built in the previous step:

    jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gepolymaskgen --base_mask glandsat_15m_bhutan_missing_imagery-basemask.tif --feather 50 --and_neg_mask bhutan.kml --output_mask glandsat_15m_bhutan_missing_imagery-mask.tif

    Fusion Notice: Base mask: glandsat_15m_bhutan_missing_imagery-basemask.tif

    Fusion Notice: glandsat_15m_bhutan_missing_imagery-basemask.tif width: 30720 height: 30720

    Fusion Notice: north: 2.882812e+01 south: 2.619141e+01 east: 9.114258e+01 west: 8.850586e+01

    Fusion Notice: File type: GTiff/GeoTIFF

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Feather 50

    Fusion Notice: AND mask: bhutan.kml

    Fusion Notice: Output mask: glandsat_15m_bhutan_missing_imagery-mask.tif

    Fusion Notice: Setting base mask glandsat_15m_bhutan_missing_imagery-basemask.tif.

    Fusion Notice: Setting feather 50.

    Fusion Notice: Writing alpha file glandsat_15m_bhutan_missing_imagery-mask.tif

    Fusion Notice: Executing: ogr2ogr -t_srs 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]' /tmp/p15693nKOdrD/tmp.shp bhutan.kml

    Warning 6: Normalized/laundered field name: 'Description' to 'Descriptio'

    Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l tmp /tmp/p15693nKOdrD/tmp.shp glandsat_15m_bhutan_missing_imagery-mask.tif

    0...10...20...30...40...50...60...70...80...90...100 - done.

    Total tiles to process: 1

    Completed 100% (1/1) - tiles/sec: 0.04 - time left: 00:00:00 [CPU: 90 Mem: 3228 MB PF: 0]

    Processed 1 tiles

    Total time to process: 00:00:23

    Average tiles per second: 0.04

    Fusion Notice: AND-ing mask with new mask.

    Fusion Notice: Saving mask to glandsat_15m_bhutan_missing_imagery-mask.tif.

    Fusion Notice: Writing alpha file glandsat_15m_bhutan_missing_imagery-mask.tif

    real 0m56.214s

    user 0m44.330s

    sys 0m11.890s

    The resulting mask file will be approximately 900 MB in filesize.

    Merged mask built with gepolymaskgen with feathered edge and internal image masking for area of missing imagery as viewed in the GIMP photo editing tool:

    gepolymaskgen merged mask in GIMP

    The custom mask file may now be imported into Fusion Pro with the source imagery by enabling the havemask masking mode in the Fusion Pro Resource Editor or by specifying the gemodifyimageryresource --havemask option on the command line.

    Please see Appendix A for further information about enabling the havemask mask mode for an image resource.

Case 5: Building custom masks with both gemaskgen and gepolymaskgen

There are special cases where the capabilities of both gemaskgen and gepolymaskgen are needed to build a custom mask file for an image resource. The SFBayAreaLansat imagery from the Google Earth Enterprise Fusion Pro Tutorial is a good example (screenshot below).

Screenshot of the usgsLanSat.tif source file imported into Fusion Pro viewed with no mask. Note the areas of fill data surrounding the imagery:

usgsLanSat.tif in Fusion pro with no mask

Screenshot of the usgsLanSat.tif imagery after being imported into Fusion Pro with a mask automatically computed:

usgsLanSat.tif in Fusion pro with a mask

Screenshot of the imported SFBayAreaLanSat image resource in Fusion after the custom mask is created:

SFBayAreaLanSat image in fusion with custom mask

Here, the Fusion Pro automask function is needed to build a mask for the source imagery to mask all Fill Data; however, the imagery also includes imagery for the water which should be, ideally, masked to the coastline. Both gemaskgen and gepolymaskgen will be needed to accomplish this type of masking to build a mask hiding fill data within the image and then creating a coastline mask. This example is a special case since the source imagery must be imported into Fusion format first, then the custom mask will be generated from the output of the imagery resource build process. This example will also utilize information found in Appendixes B, C and D for locating masks built with gemaskgen.

The workflow to accomplish this custom mask will be:

  1. Import the source imagery as a Fusion Pro image resource
  2. Use the mask file built during the image resource import as the base mask for gepolymaskgen
  3. Mask the imagery to the coastline and write out the new mask
  4. Enable the havemask mask mode for the image resource to import the custom mask

The command templates for building this custom mask will be:

  1. Locate the mask computed during the image resource build:

    gequery --outfiles
    Resources/Imagery/YourImageResource.kiasset/maskgen.kia
    /gevol/assets/Resources/Imagery/YourImageResource.kiasset/maskgen.kia/ver001/mask.tif

  2. Create an inverted version of the mask:

    /gevol/assets/Resources/Imagery/YourImageResource.kiasset/maskgen.kia/ver001/mask.tif --invert --output_mask /gevol/src/path/to/source/imagery-basemaskinverted.tif

  3. Create a coastline mask using the mask as a base image:

    gepolymaskgen --base_image

    /gevol/src/path/to/source/imagery-basemaskinverted.tif --invert --feather 100 --and_neg_mask /gevol/src/coastlines.shp --output_mask /gevol/src/path/to/source/imagery-coastlinesinverted.tif

  4. Merge the two mask files to the final custom mask:

    gepolymaskgen --base_mask /gevol/src/path/to/source/imagery-basemaskinverted.tif --invert --and_neg_mask /gevol/src/path/to/source/imagery-coastlinesinverted.tif --output_mask /gevol/src/path/to/source/imagery-mask.tif

    The resulting imagery-mask.tif custom mask may then be imported with the source imagery and applied to the image resource in Google Earth Enterprise Fusion Pro.

An example workflow is included below which constructs a custom mask - masking both fill data automatically with gemaskgen and the coastlines with gepolymaskgen - for the SFBayAreaLanSat imagery resource built during the Google Earth Enterprise Fusion Tutorial.

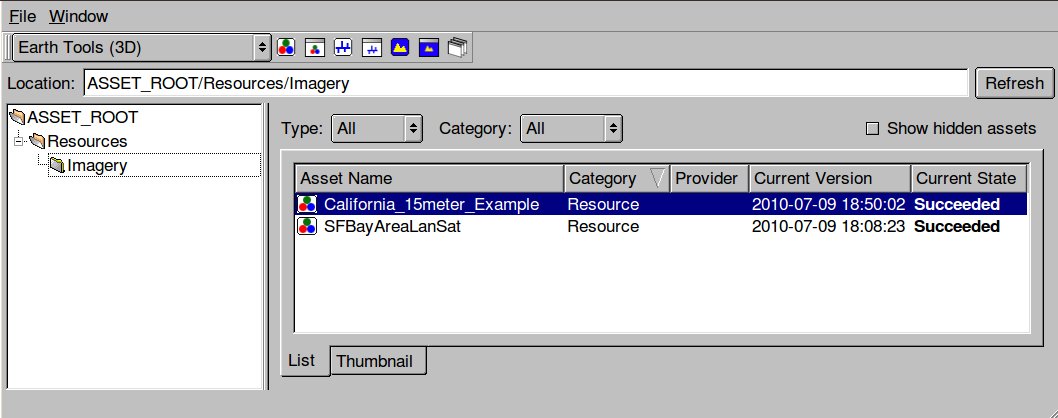

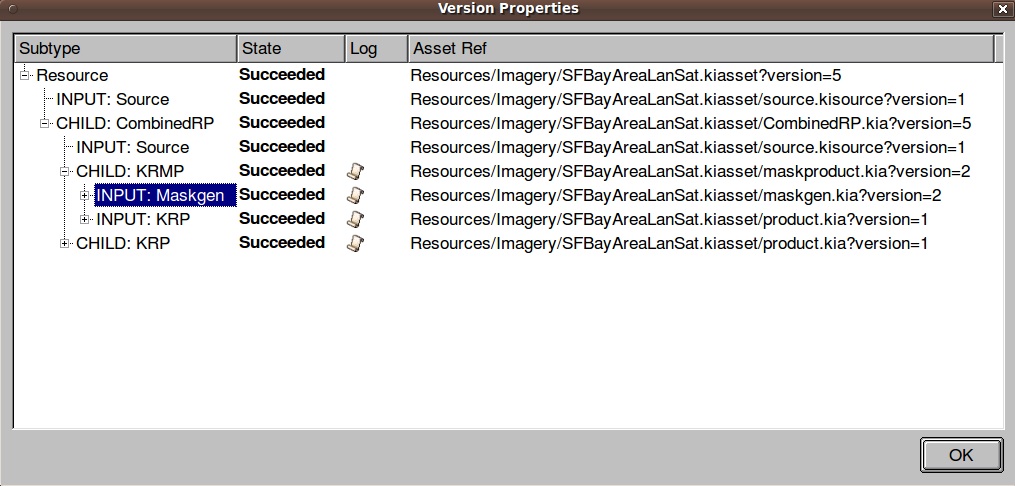

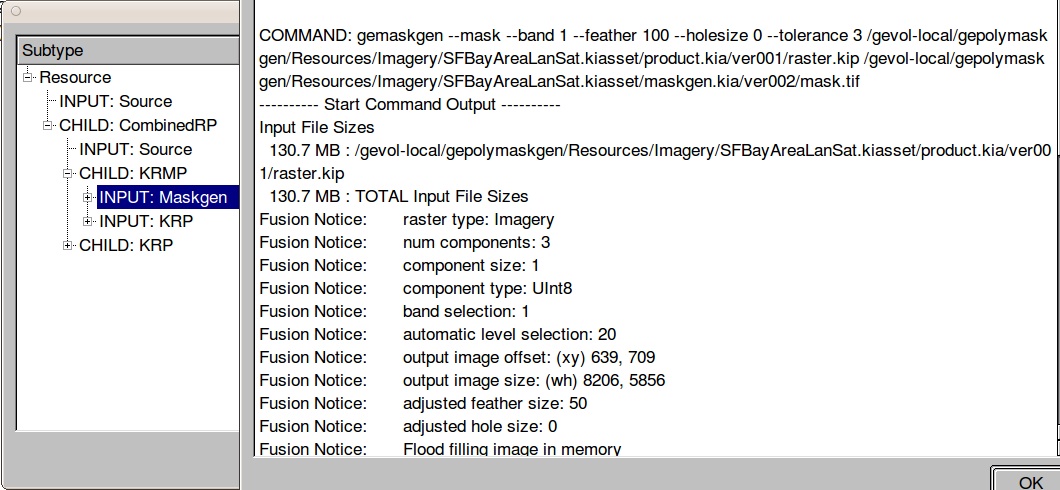

  1. Locate the computed mask file built when SFBayAreaLanSat built by gemaskgen

    jcain@machine123:/gevol-local/gepolymaskgen$ gequery --infiles Resources/Imagery/SFBayAreaLanSat.kiasset/maskproduct.kia

    /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/product.kia/ver001/raster.kip

    /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif

  2. Create a custom mask with gepolymaskgen using the gemaskgen base mask and mask to the coastlines (three steps)

    1. Invert the mask file built during the Fusion Pro import:

    jcain@machine123:/gevol-local/gepolymaskgen$ sudo``/opt/google/bin/gepolymaskgen –base_mask /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif –invert –output_mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif``

    Fusion Notice: Base mask: /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif

    Fusion Notice: /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif width: 8206 height: 5856

    Fusion Notice: north: 3.846468e+01 south: 3.645418e+01 east: -1.207133e+02 west: -1.235306e+02

    Fusion Notice: File type: GTiff/GeoTIFF

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Invert

    Fusion Notice: Output mask: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif

    Fusion Notice: Setting base mask /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif.

    Fusion Notice: Inverting current mask.

    Fusion Notice: Saving mask to /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif.

    Fusion Notice: Writing alpha file /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif

    1. Create a second mask file with the coastlines, inverted:

    jcain@machine123:/gevol-local/gepolymaskgen$ sudo``/opt/google/bin/gepolymaskgen –base_image /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif –invert –feather 50 –and_neg_mask /gevol-local/src/gepolymaskgen-howto/world_coastlines_4326.shp –output_mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif``

    Fusion Notice: Base image: /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif

    Fusion Notice: /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif width: 8206 height: 5856

    Fusion Notice: north: 3.846468e+01 south: 3.645418e+01 east: -1.207133e+02 west: -1.235306e+02

    Fusion Notice: File type: GTiff/GeoTIFF

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Invert

    Fusion Notice: Feather -50

    Fusion Notice: AND mask: /gevol-local/src/gepolymaskgen-howto/world_coastlines_4326.shp

    Fusion Notice: Output mask: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif

    Fusion Notice: Setting base image /gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif.

    Fusion Notice: Inverting current mask.

    Fusion Notice: Setting feather -50.

    Fusion Notice: Writing alpha file /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif

    Fusion Notice: Executing: gdal_rasterize -b 1 -burn 255 -l world_coastlines_4326 /gevol-local/src/gepolymaskgen-howto/world_coastlines_4326.shp /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif

    0...10...20...30...40...50...60...70...80...90...100 - done.

    Total tiles to process: 1

    Completed 100% (1/1) - tiles/sec: 0.83 - time left: 00:00:00 [CPU: 7 Mem: 292 MB PF: 0]

    Processed 1 tiles

    Total time to process: 00:00:01

    Average tiles per second: 0.83

    Fusion Notice: AND-ing mask with new mask.

    Fusion Notice: Saving mask to /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif.

    Fusion Notice: Writing alpha file /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif

    1. Construct the final mask by merging the two mask files:

    jcain@machine123:/gevol-local/gepolymaskgen$ sudo``/opt/google/bin/gepolymaskgen –base_mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif –invert –and_neg_mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif –output_mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif``

    Fusion Notice: Base mask: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif

    Fusion Notice: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif width: 8206 height: 5856

    Fusion Notice: north: 3.846468e+01 south: 3.645418e+01 east: -1.207133e+02 west: -1.235306e+02

    Fusion Notice: File type: GTiff/GeoTIFF

    Fusion Notice: Projection : 'GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433],AUTHORITY["EPSG","4326"]]'

    Fusion Notice: Invert

    Fusion Notice: AND mask: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertcoastmask.tif

    Fusion Notice: Output mask: /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif

    Fusion Notice: Setting base mask /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-invertbasemask.tif.

    Fusion Notice: Inverting current mask.

    Fusion Notice: Writing alpha file /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif

    Fusion Notice: AND-ing mask with new mask.

    Fusion Notice: Saving mask to /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif.

    Fusion Notice: Writing alpha file /opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif

Screenshots of the mask files during the build process are included below for reference. Each mask file is approximately 50 MB in file size.

Mask computed by gemaskgen during SFBayAreaLanSat image resource import:

mask by gemaskgen during SFBayAreaLanSat import

Step A: Inverted base mask:

Inverted base mask

Step B: Inverted coastlines mask:

Inverted coastlines mask

Step C: Merged, finished custom mask:

merged custom mask

The custom mask may now be imported into Google Earth Enterprise Fusion Pro with the image resource by enabling the havemask mask mode.

Please see Appendix A for further details about importing the new custom mask with an image resource.

A screenshot of the SFBayAreaLanSat image resource with the custom mask is viewable below:

SFBayAreaLanSat image with custom mask

This example workflow utilized the mask file automatically computed by Fusion Pro during the image resource import. By default, the mask files created by gemaskgen will typically be low resolution with a maximum of 16,000 pixels on any one side. It is possible to create a higher resolution mask file by manually operating the gemaskgen command on the command line.

Please see Appendix D for further details.

Appendix A: Importing custom masks with imagery and terrain resources in Google Earth Enterprise Fusion Pro

Custom imagery mask files built by either gemaskgen, gepolymaskgen, or another third-party application will only be imported automatically if the havemask mask option is selected for an image or terrain resource. Custom masks may be created before an image is imported into Fusion Pro or built after the image has already been imported as a resource. For either case, the havemask masking mode may be enabled either from the Fusion GUI Resource Editor or from the command line with the --havemaskoption.

Example procedures for enabling the havemask option by command line and the Fusion GUI are available below as reference. Further details about the Fusion GUI Resource Editor and the command line tools genewimageryresource and gemodifyimageryresource may be found in the “Google Earth Enterprise Fusion Reference Guide” Defining Resources section and the Command Line Reference section.

Four examples cases are included below as a reference - two for enabling havemask mode within the Fusion GUI for new or existing image resources, and two for enabling havemask mode on the command line.

Example 1: Enable havemask mode in the Fusion GUI for a new image resource

  1. Move the custom mask file to the same folder as the source file for the image.

  2. Rename the custom mask file to be the same file name as the source image file with a -mask.tif extension.

    For example, if the /gevol/src/imagery/example.tif is the source file, then the custom mask must be:

    /gevol/src/imagery/example-mask.tif

  3. Load the Fusion GUI Asset Manager:

    Fusion GUI Asset Manager

  4. Start a new image resource and specify the source file, provider, and acquisition date.

  5. Set the Mask Type to Have Mask from the Mask Options drop-down menu.

    Mask Options drop down menu

  6. Save the image resource, specifying the location and name for the new image resource.

  7. Build the image resource.

  8. Once complete, load the newly built Fusion image resource into the Preview window to view the results. Proceed building the image resource into an imagery project if the custom mask is satisfactory, or continue working on the custom mask and repeat the import process until satisfied with the custom mask.

Example 2: Enable havemask mode by command line for a new image resource

  1. Move the custom mask file to the same folder as the source file for the image.

  2. Rename the custom mask file to be the same file name as the source image file with a -mask.tif extension.

    For example, if the /gevol/src/imagery/example.tif is the source file, then the custom mask must be:

    /gevol/src/imagery/example-mask.tif

  3. On the command line, enter:

    genewimageryresource --havemask --sourcedate '0000-00-00' --provider 'USGS' -o Resources/Imagery/Example-Imagery /gevol/src/imagery/example.tif

    replacing the provider, sourcedate and resource name to suit the imagery being imported.

  4. Build the image resource by entering:

    gebuild Resources/Imagery/Example-Imageryon the command line.

  5. Once the image resource build is complete, load the newly built Fusion image resource into the Preview window to view the results. Proceed building the image resource into an imagery project if the custom mask is satisfactory, or continue working on the custom mask and repeat the import process until satisfied with the custom mask.

Example 3: Enable havemask mode in the Fusion GUI for an existing image resource

  1. Move the custom mask file to the same folder as the source file for the image.

  2. Rename the custom mask file to be the same file name as the source image file with a -mask.tif extension.

    For example, if the /gevol/src/imagery/example.tif is the source file, then the custom mask must be:

    /gevol/src/imagery/example-mask.tif

  3. Load the Fusion GUI Asset Manager:

    Fusion GUI Asset Manager

  4. Double-click the image resource to which the custom mask will be applied, or right-click the image. resource and select Modify

  5. When the Resource Editor loads, change the Mask Type to Have Mask from the Mask Options drop-down menu.

    Mask Options drop down menu

  6. Save the image resource.

  7. Build the image resource.

  8. Once the image resource build is complete, load the newly built Fusion image resource into the Preview window to view the results. Proceed building the image resource into an imagery project if the custom mask is satisfactory, or continue working on the custom mask and repeat the import process until satisfied with the custom mask.

Example 4: Enable havemask mode by command line for an existing image resource

  1. Move the custom mask file to the same folder as the source file for the image.

  2. Rename the custom mask file to be the same file name as the source image file with a -mask.tif extension.

    For example, if the /gevol/src/imagery/example.tif is the source file, then the custom mask must be:

    /gevol/src/imagery/example-mask.tif

  3. On the command line, enter:

    gemodifyimageryresource --havemask --sourcedate '0000-00-00' --provider 'USGS' -o Resources/Imagery/Example-Imagery /gevol/src/imagery/example.tif

    replacing the provider, sourcedate and resource name to suit the imagery being imported.

  4. Build the image resource by entering gebuild Resources/Imagery/Example-Imageryon the command line.

  5. Once the image resource build is complete, load the newly built Fusion image resource into the Preview window to view the results. Proceed building the image resource into an imagery project if the custom mask is satisfactory, or continue working on the custom mask and repeat the import process until satisfied with the custom mask.

Appendix B: Locating mask files and Fusion format data in an Asset Root

Several files are created by GEE Fusion Pro when building an imagery or terrain resource, including the Fusion-format version of the imagery (.kip extension) or terrain (.ktp extension), a computed mask file built by gemaskgen, and the Fusion-format version of the computed mask (.kmp extension). These files and folders may be located within the Asset Root with the help of the gequery command and the --outfiles and --infiles options.

These files may be desired for custom masking operations such as computing a new, higher-resolution mask with gemaskgen - which is computed from a .kip or .ktp folder - or locating the mask automatically built with gemaskgen to add coastlines, such as described in the Case 5 Example section. This section of the How-To guide will provide command templates for locating the Fusion-format versions of imagery and terrain within the GEE Fusion Asset Root, and locating a mask file built by gemaskgen during resource import.

Example 1: Locate the Fusion format imagery (.kip) and mask (.kmp) files of an image resource

The gequery --outfiles command can be used to locate the Fusion-format versions of imported imagery or terrain data, and the Fusion-format version of the mask file as these are the output of the Fusion resource. Here is an example command to find the Fusion format imagery (.kip) and mask (.kmp) files from the SFBayAreaLanSat image resource built during the Fusion Pro Tutorial:

jcain@machine123:/gevol-local/gepolymaskgen$ gequery --outfiles Resources/Imagery/SFBayAreaLanSat.kiasset

/gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/product.kia/ver001/raster.kip

/gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskproduct.kia/ver002/mask.kmp

The response from gequery --outfiles provides the full folder path where the .kip and .kmp folders are located that comprise the SFBayAreaLanSat image resource imagery and mask in Fusion format. The location of the .kip folder will be vital information to regenerate a mask with gemaskgen as noted in Appendix C, or if working with an imagery dataset that is larger than 65,000 pixels on a side as noted in Appendix D. The version of the imagery .kip folder and mask .kmp folders will change over time as newer source imagery is imported for the image resource or changes are made to the automask. The gequery --outfiles command will report the full paths that relate to the most current version of the image resource. Further information about the gequery command may be found in the gequery --help menu.

Example 2: Locate a mask.tif file automatically built by the automask feature of a Fusion resource build

Finding the mask file automatically computed by gemaskgen during a resource import is slightly different since it is the output of a different phase of the image resource build, but is needed to build the .kmp folder. The gequery --outfiles options can help locate the mask file built by the Fusion automask tool gemaskgen. Here is an example command to locate the full path of the mask file computed by Fusion for the SFBayAreaLanSat image resource built during the Fusion Pro Tutorial:

jcain@machine123:/gevol-local/gepolymaskgen$ gequery --outfiles Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia

/gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/maskgen.kia/ver002/mask.tif

The response from gequery --outfiles provides the full path location to the mask file built by the gemaskgen tool when the automask masking mode is selected for a resource. This computed mask file is used to build the Fusion-format mask (.kmp) for a resource. It is possible to build complex mask files for image resources by combining output from the gemaskgen automask tool and the gepolymaskgen tool, as described in the Case 5 Example where the automatic fill data detection of gemaskgen can be combined with coastline masking capabilities of gepolymaskgen.

Please see the Case 5 Example for further details.

Example 3: Locate the mask.tif file and Fusion-format .kip file utilized for building the Fusion format .kmp (mask product)

Two inputs are required by Fusion to convert a mask file from GeoTIFFformat into Fusion format for use with an image or terrain resource: the location of the mask.tif file and the location of the correct .kip folder. Examples 1 and 2 demonstrated how gequery --outfiles may be utilzed to determine the folder paths of the Fusion-format .kip and .kmp data and the location of the mask file computed by gemaskgen during the resource build.

The locations of the .kip and mask.tif files read in by Fusion for generating the Fusion-format .kmp mask may be found with the gequery --infiles option. This is useful in situations where a higher-fidelity base mask file is needed for building a custom mask file, as described in the Case 5 Example. Here is the command to locate the full paths to the computed mask file (gemaskgen) and Fusion-format .kip folder for the SFBayAreaLanSat image resource built during the Fusion Pro Tutorial:

jcain@machine123:/gevol-local/gepolymaskgen$ gequery --infiles Resources/Imagery/SFBayAreaLanSat.kiasset/maskproduct.kia

/gevol-local/gepolymaskgen/Resources/Imagery/SFBayAreaLanSat.kiasset/product.kia/ver001/raster.kip

/opt/google/share/tutorials/fusion/Imagery/usgsLanSat-mask.tif

A new base mask file may be built with the gemaskgen command which permits a larger number of pixels to be used for developing the mask file - as described in Appendix D - which could then be used in conjunction with There Case 5 Example, or as a base mask for very large image resources as described in Appendix F.

Appendix C: Determining source file raster size with geinfo

Google Earth Enterprise Fusion Pro includes a tool called geinfo capable of reporting metadata about source imagery and terrain files, including:

  • Overall raster dimensions
  • Pixel resolution
  • Geographic location of the data
  • Native projection or geographic coordinate system
  • Number of bands in the file
  • Band format (ex: 8-bit, 16-bit)

geinfo is able to read the same raster source formats that can be imported as Fusion image resources, including khvr (virtual raster) files for the raster dimensions of a mosaic.

Mask files computed with the gepolymaskgen tool will be written out in GeoTIFF format and must be less than 2 GB in total file size. The geinfo tool can be used to determine the overall raster size of the input source file by entering geinfo source_imagery.tif onto the command line, where GEE Fusion Pro is installed, and then mulitplying the source file raster width (pixels) and height (pixels) values. The product may be used to estimate the file size that would be created by gepolymaskgen, if the source file was specified as the gepolymaskgen --base_image. Example output from geinfo is included below for the California 15-meter Landsat imagery that was used with the Case 3 Example. The raster dimensions for the mosaic are listed near the top for quick reference.

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ geinfo glandsat_15m_california_bay_area.khvr

File Type:   KHM/Keyhole Mosaic

Raster Size: 35840,30720

Extents:     (ns) 38.496093750000,35.859375000000

(ew) -121.113281250000,-124.189453125000

Pixel Size:  (xy) 0.000085830688,-0.000085830688

Keyhole Normalized {

Raster Size: 35840,30720

Extents:     (ns) 38.496093750000,35.859375000000

(ew) -121.113281250000,-124.189453125000

Pixel Size:  (xy) 0.000085830688,-0.000085830688

Top level:   22

}

Spatial Reference System:

GEOGCS["WGS 84",

DATUM["WGS_1984",

SPHEROID["WGS 84",6378137,298.257223563,

AUTHORITY["EPSG","7030"]],

AUTHORITY["EPSG","6326"]],

PRIMEM["Greenwich",0],

UNIT["degree",0.0174532925199433],

AUTHORITY["EPSG","4326"]]

Corner Coordinates:

Upper Left  (-124.1894531,  38.4960938) (124d11'22.03"W, 38d29'45.94"N)

Lower Left  (-124.1894531,  35.8593750) (124d11'22.03"W, 35d51'33.75"N)

Upper Right (-121.1132812,  38.4960938) (121d 6'47.81"W, 38d29'45.94"N)

Lower Right (-121.1132812,  35.8593750) (121d 6'47.81"W, 35d51'33.75"N)

Center      (-122.6513672,  37.1777344) (122d39'4.92"W, 37d10'39.84"N)

Band 1 Block=2048x200 Type=Byte, ColorInterp=Red

NoData Value=0

Band 2 Block=2048x200 Type=Byte, ColorInterp=Green

NoData Value=0

Band 3 Block=2048x200 Type=Byte, ColorInterp=Blue

NoData Value=0

Band 4 Block=2048x200 Type=Byte, ColorInterp=Alpha

Multiplying the raster dimensions together (35840 x 30720) results in 1,101,004,800 which means a 1 GB (approximate) mask file would be created if the khvr was specified as a gepolymaskgen --base_image.

Maximum suggested raster dimensions for source files used as gepolymaskgen –base_image files

Some suggested maximum raster dimensions are included as a rough guideline to help size and scope source files when creating custom masks. The source file should not be used as a base image for gepolymaskgen if the total raster size is larger than 2,000,000,000 pixels. For this case, a lower-resolution image should be created as described in Appendix D.

Square-shaped rasters

Perfectly square source raster files should be less than 44,000 pixels by 44,000 pixels for use as a base image or base mask with gepolymaskgen. A substitute base image or mask file should be created for square-shaped source images that are larger than 44,000 pixels on both sides, as described in Appendix D.

Rectangular-shaped rasters

The maximum suggested raster dimensions for rectangular images varies by the amount of the longest side. Some suggested dimensions are included below for reference.

  • 55,000 x 30,000
  • 60,000 x 35,000
  • 65,000 x 30,000
  • 70,000 x 27,000

A substitute base image or mask file should be created if the source imagery is larger than these recommended dimensions, or if the product of the raster width and height is more than 2,000,000,000 pixels. Instructions for creating a substitute base image, with gemaskgen, may be found in Appendix D.

Appendix D: Building high resolution mask files with gemaskgen

The gemaskgen automask utility has several options to automatically compute a mask file from an imported Fusion imagery resource (.kip); however, by default gemaskgen limits the computed mask to be a maximum of 16,000 pixels on any one side, which can result in low-resolution masks for high-resolution image resources. Higher resolution masks may be created by manually invoking the gemaskgen tool and specifying a higher pixel value for the --maxsize option.

gemaskgen requires access to the Fusion format version of the imagery resource to compute the mask file, which may be located either in the Fusion Asset Root or in a separate folder, depending on whether the imagery was processed by another system and copied to the Fusion system for use, or if a KRP.taskrule taskrule file redirects output from Fusion resource imports to another volume. The location of both the .kip folder Fusion-format imagery and mask.tif file may be found with the gequery --infiles command as described in Appendix B, Example 3.

The exact settings used by gemaskgen when building a mask file for an image resource may be found from the gemaskgen log file, available in the Google Earth Enterprise Fusion Pro Asset Manager. To access the log file, load the Asset Manager and right-click on the desired image resource. Select Current Version Properties, then expand the CHILD.KRMP item until the Maskgen.kia& entry is visible.

maskgen version properties

Click the logfile icon to the right of the Maskgen.kia entry to open the logfile.

Maskgen Logfile diagram

The gemaskgen command executed by Fusion Pro during the image resource build is visible at the top of the log file on the line starting with COMMAND. This command may be utilized as a template for building a higher resolution mask by also including the --maxsize option.

An example gemaskgen use will be included below that will build a mask for the example-imagery.kip image resource with a maximum size of 55,000 pixels, feathered 100 pixels into the imagery, with fill data set to pixel value 0:

jcain@machine123:/gevol-local/src/gepolymaskgen-howto$ time gemaskgen --mask --maxsize 55000 --feather 100 /path/to/example-imagery.kip /path/to/example-imagery-mask.tif

gemaskgenwill read the example-imagery.kip folder and compute a mask file that masks Fill Data pixels and builds a feathered edge of 100 pixels into the usable imagery. The actual output dimensions of the computed mask varies from case to case; however, gemaskgen will restrict the maximum length of either the height or width to 55,000 pixels. Additional information about recommended mask dimensions may be found in Appendix C. Once complete, the mask file computed by gemaskgen may be used as a base image for building a custom mask with gepolymaskgen and then imported with the image resource as described in Appendix A.

Further information about available gemaskgen options may be found in the gemaskgen --help menu.

Appendix E: Using a Photo Editing application to augment a custom mask

This is a special section for manually modifying a custom mask for an imagery resource. Both the gepolymaskgen and gemaskgen tools are able to build high-quality masks to accompany image resources; however, there are cases where neither tool may be able to provide the correct solution for a set of imagery. Consider the mask and imagery resource from the Case 5 Example based on the SFBayAreaLanSat image resource for California (below) where gemaskgen successfully masked Fill Data from view and gepolymaskgen successfully masked ocean imagery to the specified coastline. The resulting mask masks out the San Francisco Bay which makes the low-resolution BlueMarble imagery visible (green).

SFBayAreaLanSat image resource as completed in Example Case 5:

SFBayAreaLanSat image with custom mask

SFBayAreaLanSat image resource with automasking only:

SFBayAreaLanSat image with automask

One solution for this case is to manually modify the finished custom mask with a photo editing tool such as GIMP or Adobe Photoshop to alter the mask to show more or less imagery based on the circumstance. In this example, the usgsLanSat-mask.tif custom mask will be modified such that imagery for the San Francisco Bay will be visible in the final image resource while still masking imagery to the California Coastline. Here is the workflow for manually modifying the mask file for the SFBayAreaLanSat image resource:

  1. Load the usgsLanSat-mask.tif mask file created from the Case 5 Example into the photo editing application.

    merged custom mask

  2. Select the paintbrush tool and set to paint with white fill(255). The pixel width, opacity, and feather value of the brush needed will vary for each mask.

  3. Brush out the entire San Francisco Bay to remove the bay coastline mask.

    bay coastline mark removed

  4. Save the updated mask file to the same folder location as the usgsLanSat.tif source image file for the SFBayAreaLanSat image resource- /opt/google/share/tutorials/fusion/Imagery.

  5. Modify the SFBayAreaLanSat image resource to enable the HaveMask mask mode.

    Please see Appendix A, Examples 3 and 4 for further details.

  6. Build the image resource to import the updated mask file.

  7. Load the SFBayAreaLanSat image resource into the Fusion Pro Preview.

    usgsLanSat mask after mask updates to show the imagery for the San Francisco Bay:

    san francisco bay with usgsLanSat mask

usgsLanSat mask before mask edits:

usgsLanSat before mask

Appendix F: Building custom masks for large source imagery

This is a special section intended for use when working with source imagery datasets - such as an image resource of 0.5-meter per pixel resolution 3-band, color imagery for an entire state - where a high-fidelity mask could easily create a mask file larger than 2 GB in file size. The same tools described in this document and appendices can be used to construct a custom mask that provides high fidelity masking for the image resource while being less than 2GB in file size. The key difference in the workflow for building custom masks for large imagery resources - where the image resource will have more than 65,000 pixels on one side - is the source imagery are imported first, then gemaskgen is called manually to create a stand-in base mask file for use with gepolymaskgen. This workflow is similar to the Case 5 Example where the image resource was imported first into Fusion Pro and then a custom mask was generated and added after import.

The general workflow for this use case will be:

Assuming the source imagery is detected to be larger than 65,000 pixels on one side or more than 2,000,000,000 total pixels with geinfo (See Appendix C);

  1. Import the image resource with Fusion Pro.
  2. View the finished image resource in the Fusion Pro window to determine what type of masking may be needed so an appropriate example case may be referenced.
  3. Find the full paths to the imported Fusion-format kip folder for the imagery with the gequery --outfiles command (See Appendix B, Example 1).
  4. Generate a stand-in base mask file with gemaskgen that will construct an image less than 2,000,000,000 total pixels (See Appendix D for creating the mask and Appendix C for recommended mask sizes).
  5. Construct a custom mask with gepolymaskgen referencing the stand-in image from the Case 5 Example as the --base_image. Reference one of the five example cases for additional steps in constructing the custom mask.
  6. Update the image resource configuration to enable havemask mode so the custom mask will be imported and applied to the image resource (See Appendix A, Examples 3 and 4).
  7. Build the image resource to commit the change and import the new custom mask, then view the image resource in the Fusion Preview window.

Appendix G: gepolymaskgen help menu

A full copy of the help contents for gepolymaskgen is available in this appendix for reference:

usage: gepolymaskgen --help | -?

         gepolymaskgen [--feather <int_feather>] --base_mask <geotiff_mask_file> [options] --output_mask <geotiff_mask_file>

         gepolymaskgen [--feather <int_feather>] --base_image <geotiff_image_file> [options] --output_mask <geotiff_mask_file>

Options are applied in order given.

Valid options:

         --feather <int_feather>:          Feather to apply to all

                                          subsequent masks until a

                                          different feather is given.

                                          Feather can be 0, positive,

                                          or negative. Default is 0.

         --feather_border <int_flag>:     If flag is non-zero, border

                                          is feathered. Otherwise,

                                          border is left in tact.

                                          Flag remains in effect

                                          until it is modified.

                                          Default is border is

                                          feathered.

         --and_neg_mask <mask_file>:      Bitwise AND of negative image

                                          of polygon or raster mask

                                          with the current mask.

                                          Polygons can be given in

                                          .kml or .shp files and are

                                          assumed to be filled with

                                          0x00. Raster masks should be

                                          .tif files with the same pixel

                                          dimensions as the base mask.

                                          Care should be taken not to

                                          overlap feathered regions.

         --or_mask <mask_file>:           Bitwise OR polygon or raster

                                          mask to the current mask.

                                          Polygons can be given in

                                          .kml or .shp files and are

                                          assumed to be filled with

                                          0xff. Raster masks should be

                                          .tif files with the same pixel

                                          dimensions as the base mask.

                                          Care should be taken not to

                                          overlap feathered regions.

         --threshold <thresh_byte>:       All pixels at or below the

                                          threshold byte are set to

                                          0x00; all other pixels are set

                                          to 0xff.

Please note that ordering of arguments is important; they are applied in the order that they are given. The feather argument implies that you are setting the feather to be used for any subsequent masks. E.g. to feather the base mask, you must set the feather before the base mask is given. Positive feathers erode the mask (white area retracts); negative feathers expand the mask (white area grows).

   Examples:

   -- simple polygon mask with no feathering

      gepolymaskgen   --base_image /path/input_image.tif \

                        --or_mask /path/polygon.kml \

                        --output_mask /path/result_mask.tif

      -- negative polygon mask with some feathering

      gepolymaskgen   --base_image /path/input_image.tif \

                        --feather 30 \

                        --feather_border 0 \

                        --and_neg_mask /path/polygon.kml \

                        --invert \

                        --output_mask /path/result_mask.tif

                        -- OR and AND polygon and tiff masks with different feathers \

                        gepolymaskgen --feather 30 \

                        --base_mask /path/base_mask.tif \

                        --feather 20 \

                        --feather_border 0 \

                        --or_mask /path/SF.kml \

                        --or_mask /path/daly_city.kml \

                        --feather 15 \

                        --feather_border 1 \

                        --or_mask /path/circle_mask.tif \

                        --feather 5 \

                        --and_neg_mask /path/gg_park.kml \

                        --and_neg_mask /path/northbeach.kml \

                        --feather 40 \

                        --and_neg_mask /path/circle_mask2.tif \

                        --output_mask /path/mask.tif
